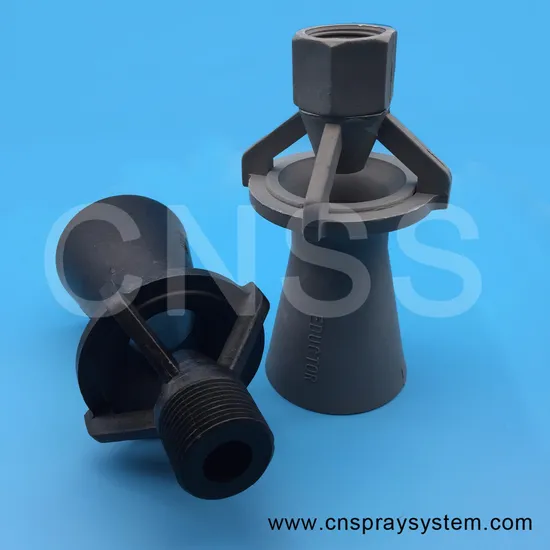

3/4" Female Circulate Liquids Mixing Nozzle

Product Description

Model No	EPF
Trademark	CNSS
Price/Payment	T/T 100% in advance
Material	PP, PVDF, 316SS
Productivity	10,000 pcs/month

Other size and material as below:
Description

Mixing Fluid Nozzle
Material Characteristic
Constructed of carbon fiber-glass-reinforced Polypropylene of SS 316.
Maximum operation temperature 120°C for PP, above 300°C for Stainless Steel.
Corrosion resistance and aging resistance.

Functions
Provides a homogeneous air-free fluid mix for solution, minimize the oxygenolysis.
Enhance the turbulance effect, mix the solution well.
Assures Uniformity of solution to improve the surface treatment for workpiece.

Design Features
Proper parameters are selected to design the geometric curved surface, according to
Berboulli flow theory of gravity. The fluid that gush out from the taper nozzle with a high
velocity form a low pressure area round the outlet. Because of the different pressure
between areas and the fluid momentum act on input liquid, the high velocity fluid and the
input liquid is introduced into the "mixdiffuse" chamber with the proportion of 1:4 and then
spout the nozzle, offering a air-free mix of solution.

Note
In large solution tank, Mixing fluid nozzle provide better efficiency if they are aligned
circlewise rather than monoaligned, while the efficiency is lower when they are
horizontally aligned.
Mixing fluid nozzle should be placed at the bottom of the tank to get maximum flux rate.

---
