10ton Pneumtaic Air Winch Approved BV/CCS/API/ISO9001-2008/ABS

Product Description

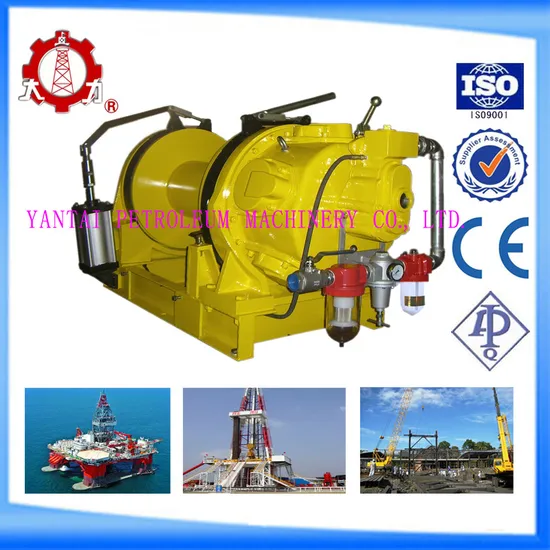

10Ton Pneumtaic Air Winch Approved BV/CCS/API/ISO9001-2008/ABS
I. Working Principle
JOHS-100*12 air winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.

II. Security
Considering security, this winch is specially designed with hand brake air brake.

III. Application Places
This winch is widely used for drilling platform,marines,mingings,engineering sites,etc.to pull heavy cargo.

Why choose us:

1.Equipped with cylinder air brake, which enables the winch automatically in brake when stops.
2. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
3. Compact in size, light weight, portable to move and easy to install.
4. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
6. Reliable operation with little noise with muffler.
7. Low maintenance relieves your anxiety and assures you to use it freely.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
9. This is a kind of Air winches are available from 0.5ton to 10 ton capacities. Pull Force can be tailor-made to your requirements.
Technical Parameters:

Model		JQHS-100
Pressure of Air Compressor ( MPA )		0.6-0.8
Rated Traction Force ( KN )		100
Wire Rope Velocity ( M/MIN )		12
Pneumatic Motor	Rated Power ( KW )	30
	Cylinder Number ( PCS )	5
	Cylinder Diameter ( MM)	160
	Air Consumption ( L/S )	400
Drum	Number ( PCS )	1
	Diameter ( MM )	300
	Width ( MM )	620
	Wheel Rim Diameter ( MM )	650
	Rope Content ( M )	200
Wire Rope Diameter(MM)		24
Inlet Diameter(MM)		32
Dimension	Length ( MM )	1638
	Width(MM)	960
	Height (MM)	930
	Weight (KGS)	1300

Any questions, please contact:
Tina Duan (Oversea Sales Manager)
Yantai Petroleum Machinery Co., Ltd.
Tel: +86-535-6087576
Mob: +86-15053522870 Fax: +86-535-6083272
Add: No.201 Shangkuang West Road,Zhifu District,Yantai.Shandong,China
Web: powerpetro.en.made-in-china.com

---
