Mobile Crusher Plant Mobile Stone Crusher Price

US$19,800.00

1 Piece

US$15,000.00

2-4 Pieces

US$12,000.00

5+ Pieces

Basic Info.

Model NO.

YG200

Cutter Material

Hard Alloy

Drive

Electric

Feed Size

150mm-299mm

Jaw Plate Material

Hard Alloy

Object

Basalt, Copper Ore, Gold Ore, Granite, Iron Ore, Limestone, Quartz

Name

Mobile Jaw Crusher

Electrical Motor

90kw

Hopper Size

3.5m×1.8m

Feeder Thickness

8mm

Total Weight

10tons

Conveyor Belt

7mx0.8m

Conveyor Power

5.5kw

Thickness of Steel Plate

16mm

I-Beam Underframe

250

Sand Production

30tph

Stone Production

50tph

Overall Size

10*2.8*3.5m

Specification

14.5cbm

Trademark

Yugong

Origin

China

HS Code

8428109000

Production Capacity

20units/Week

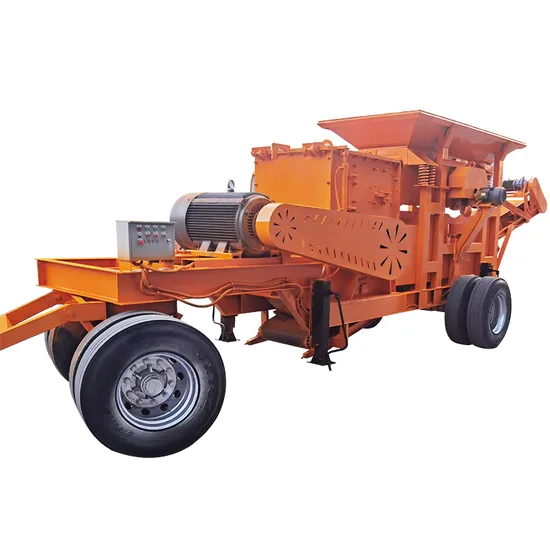

Product Description

Product Description The mobile jaw crusher is a new type of crushing equipment suitable for crushing various ores or rocks with a compressive strength below 250Mpa, such as construction waste, basalt, granite, coal gangue, cement clinker, iron ore, bauxite, quartz stone.
Application The mobile crushing station is widely used in the crushing, screening, as well as the recycling of minerals, stones and other aggregates:
Quarrying crushing: granite, basalt, gabbro, limestone, cobblestone, dolomite, silica sand, talc, etc. Mining crushing: gold ore, iron ore, copper ore, manganese ore, lithium ore, lead-zinc ore, coal, etc. Solid waste recycling: slag, tailings, construction waste, concrete, demolition waste, etc. Infrastructure projects: road construction, aggregate production, railway development, airport expansion, etc
