Metric Steel Pin Gauge

Product Description

Metric Steel Pin Gauge
Specifications

Model No.	Size (mm)	Quantity (pcs)	Step mm	Accuracy
P9020-71-1	0.30 - 1.00	71	0.01	±0.001mm
P9020-100-2	1.01 - 2.00	100	0.01	±0.001mm
P9020-100-3	2.01 - 3.00	100	0.01	±0.001mm
P9020-100-4	3.01 - 4.00	100	0.01	±0.001mm
P9020-100-5	4.01 - 5.00	100	0.01	±0.001mm
P9020-100-6	5.01 - 6.00	100	0.01	±0.001mm
P9020-100-7	6.01 - 7.00	100	0.01	±0.001mm
P9020-100-8	7.01 - 8.00	100	0.01	±0.001mm
P9020-100-9	8.01 - 9.00	100	0.01	±0.001mm
P9020-100-10	9.01 - 10.00	100	0.01	±0.001mm
P9020-100-11	10.01 -11.00	100	0.01	±0.001mm
P9020-100-12	11.01 - 12.00	100	0.01	±0.001mm
P9020-100-13	12.01 - 13.00	100	0.01	±0.001mm
P9020-100-14	13.01 - 14.00	100	0.01	±0.001mm
P9020-100-15	14.01 -15.00	100	0.01	±0.001mm
P9020-100-16	15.01 -16.00	100	0.01	±0.001mm
P9020-100-17	16.01 -17.00	100	0.01	±0.001mm
P9020-100-18	17.01 -18.00	100	0.01	±0.001mm
P9020-100-19	18.01 -19.00	100	0.01	±0.001mm
P9020-100-20	19.01 -20.00	100	0.01	±0.001mm
P9020-100-21	20.01 - 21.00	100	0.01	±0.001mm
P9020-100-22	21.01 - 22.00	100	0.01	±0.001mm
P9020-100-23	22.01 - 23.00	100	0.01	±0.001mm
P9020-100-24	23.01 - 24.00	100	0.01	±0.001mm
P9020-100-25	24.01 - 25.00	100	0.01	±0.001mm
P9020-100-26	25.01 - 26.00	100	0.01	±0.001mm
P9020-100-27	26.01 - 27.00	100	0.01	±0.001mm
P9020-100-28	27.01 - 28.00	100	0.01	±0.001mm
P9020-100-29	28.01 - 29.00	100	0.01	±0.001mm
P9020-100-30	29.01 - 30.00	100	0.01	±0.001mm

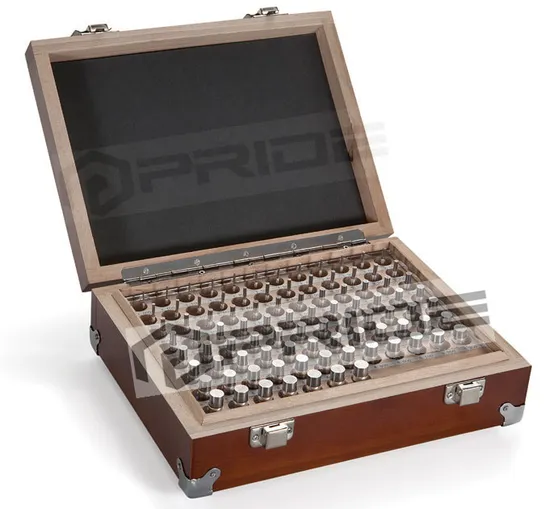

Measure hole size, calculate distance between holes, gage slot width, use for GO/NO GO gage Optional accuracy:±0.002mm,0.0025mm, 0.0015mm, and 0.0005mm Steps can be special sizes. Made of steel Packed in plastic box or wooden box

IMPERIAL STEEL PIN GAUGE

Model No.	Size (mm)	Quantity (pcs)	Step mm	Accuracy
P9020-50-0.06	0 .011 to .060	50	0.001"	+0.0001"
P9020-50-0.0605	0 .0115 to .0605	50	0.001"	+0.0001"
P9020-190-0.25	0 .061 to .250	190	0.001"	+0.0001"
P9020-190-0.2505	0.0615 to .2505	190	0.001"	+0.0001"
P9020-240-0.25	0.011 to .250	240	0.001"	+0.0001"
P9020-240-0.2505	0 .0115 to .2505	240	0.001"	+0.0001"
P9020-250-0.500	0 .251 to .500	250	0.001"	+0.0001"
P9020-250-0.5005	0 .2515 to .5005	250	0.001"	+0.0001"
P9020-125-0.625	0.501 to .625	125	0.001"	+0.0001"
P9020-125-0.6255	0 .5015 to .6255	125	0.001"	+0.0001"
P9020-125-0.750	0.626 to .750	125	0.001"	+0.0001"
P9020-125-0.7505	0.6265 to .7505	125	0.001"	+0.0001"
P9020-82-0.832	0.751 to .832	82	0.001"	+0.0001"
P9020-82-0.8325	0.7515 to .8325	82	0.001"	+0.0001"
P9020-84-0.916	0.833 to .916	84	0.001"	+0.0001"
P9020-84-0.9165	0.8335 to .9165	84	0.001"	+0.0001"
P9020-84-1.000	0.917 to 1.000	84	0.001"	+0.0001"
P9020-84-1.0005	0.9175 to 1.0005	84	0.001"	+0.0001"
Measure hole size, calculate distance between holes, gage slot width, use for GO/NO GO gage Optional accuracy:-0.0001",+0.0002", -0.0002",0.00004" Steps can be special sizes Made of steel Packed in plastic box or wooden box
