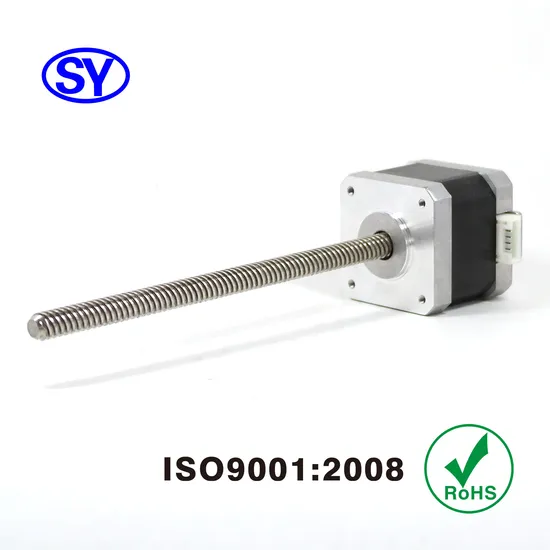

1.8deg NEMA 17 3D Printer Stepper Electrical Motor

Product Description

1.8deg NEMA 17 3D Printer Stepper Electrical Motor
Features: High torque
Low noise
Smallsize
Product Description
1. Specifications:
Motor Model: 42BYGH1102-B-20 Step Angle: 1.8°± 5% full step, no load Motor Length: 34.3mm (1.35 in) Max Holding Torque: 280mN.m (39.6oz-in) Rated Current: 0.84 A DC Resistance per Phase: 5.75ohm Inductance per Phase: 9.3mH Shaft End Length: 20mm (0.79 in) Shaf: D-Cut Shaft Connectors: Connectors, Lead Wires Ambient Temperature: -24ºC- +60ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100MΩ 500V DC Dielectric Strength: 600V AC for 1S, leakage current less than 1mA 2. Note: Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list. 3.Payment term: T/T in advance, 30% deposit, 70% balance before shipment.

About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of the direved motors can be customized, welcome to contact us for more details.
Contacts: Mr. Kanix Ik Mobile: (+86) 1552 1524 907 Homepage: shengyangmotor.en.made-in-china.com

Series & Length	Model Number	Holding Torque	Rated Current	Resistance per Phase	Inductance per Phase
		mNm oz-in	A	ohm	Mh
42BYGH0 26mm (1.02 in.)	42BYGH001	120 17	0.3	42	48
	42BYGH007	160 22.66	0.4	10.4	14
42BYGH1 33mm (1.30 in.)	42BYGH104	275 38.94	0.4	40	35
	42BYGH107	250 35.40	0.4	22	30
42BYGH2 34mm (1.34 in.)	42BYGH202	220 31.15	0.5	30	37
42BYGH3 40mm (1.57in)	42BYGH312	530 75.05	0.6	26	48
42BYGH4 40mm (1.57 in.)	42BYGH412	420 59.47	1	6.7	9.8
	42BYGH413	300 42.48	1	3.5	5
42BYGH11 34mm (1.34 in.)	42BYGH1101	240 33.98	0.4	30	45
	42BYGH1102	280 39.65	0.84	5.75	9.3

---
