Plywood Horizantal face veneer slicer machine,recon veneer slicing machine

Product Details

Product Details

Product Description

Product Description

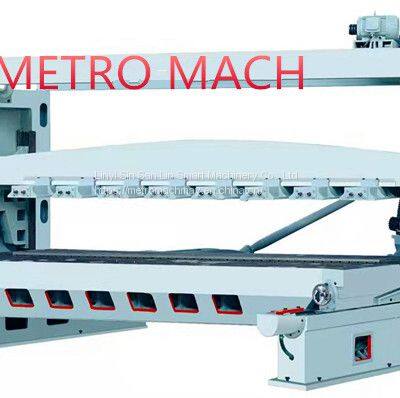

Product DescriptionNatural Wood Engineered Wood Veneer Slicer Machine
ModelBB1131
Max cutting size3000*510*700mm
Blade size3100*200*20mm
Veneer thickness0.1-2.0mm
Cut speed18-32pcs/min
Clamping methodsAuto & manual
Total power28Kw
Main motor power22Kw
Wood clamping motor3Kw
Feed motor3Kw
Overall size7698*4152*2808mm
Weight19T
1. Double V-chutes are used for both sides the machine, with high parallel; Special polymer wear-resistant material coated on the surface. Machine runs in higher stability and with less friction.
2. Serve motor control system is used fo, timber feeding, guarantee the veneer thickness in a high precision, avoiding blade scratch on the timber
3. Whole casted beam holds the log stongly. And hydraulic driven hooks clamp the log tightly and effectively Vacuum system is used inside the log beam. Helping hdding ttre big timber avoiding its deforming or dropping down duringg the cutting electric control
4. All switch button are gathered togeffierin cabinet Single person can operate the machine avoiding the dangerous caused by fault
5. Special designed big size driving gear runs smooffily with a low noi, e when it runs in high speed
Linyi SinSanLin Smart Machinery Co., Ltd was founded in 1989 year, the earliest and biggest professional manufacturer of all kinds of wood-based panel machinery.
Our featured products include:
1. Face veneer rotary peeling production line.
2. Face veneer slicer peeling production line.
3. Plywood complete production line.
4. Particleboard / chipboard production line.
5. MDF/HDF production line.
6. Melamine lamination hot pressing line.
7. LVL complete production line.
