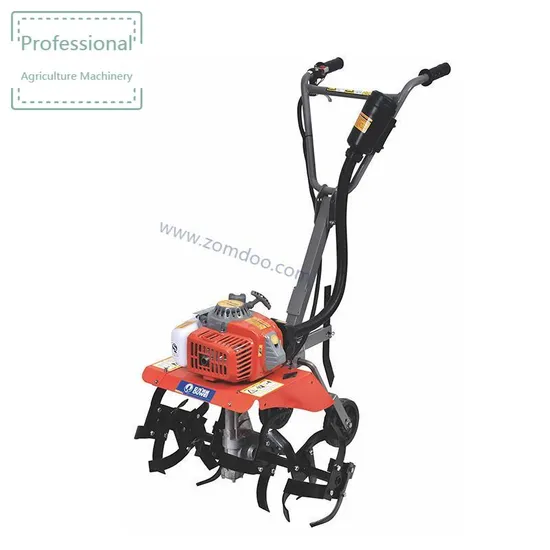

Mini Tiller, Walking Tiller 63cc

US$200.00-480.00 50 Pieces (MOQ)

Basic Info.

Model NO.

ZD-1WG2.2Q

Application Field

Agriculture

Farming Policy

Bed Planting Machinery

Power Source

Gasoline

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Color

Orange

Warranty

One Year Warranty for Engine

Engine Displacement

63cc

Reduction Gear Ratio

1:29

Starting System

Recoil

Max.Power

2.2kw

Rotational Speed

6500rpm

Productivity

0.04~0.06hm2

Engine Type

2 Stroke,Single Cylinder, Forced Cooling

Transport Package

High Strength Carton Box

Specification

Working Width: 650mm

Origin

China

HS Code

8432290000

Production Capacity

20000PCS Per Year

Product Description

Product Description
1. Centrifugal clutch is adopted, which makes the operation easier and safer.2. It adopts gear + worm gear two-stage speed reduction, large speed ratio, small volume, light weight and large transmission troque.3. Two stage air filter is adopted to isolate dust, protect power and prolong service life.4. Sepcialized tool selection, suitable for a wide range of crop fields.5. Strengthen the cutting and Anti-entanglement.
Detailed Photos
Product Parameters

Product Name	Mini Tiller, Walking Tiller
Model	ZD-1WG2.2Q
Engine Model	1E48F
Power/Rotational Speed	2.2kw/6500rpm
Displacement	63cc
Starter	Manual(Recoil Starter)
Carburetor	Diaphragm Type
Idling Speed	2800~3200r/min
Fuel Tank Capacity	1.3L
Fuel Oil	Mixed Fuel
Mixed Ratio of Fuel	25:1(Gasoline : Oil special for 2-stroke engine)
Clutch Type	Automatic Centrifugal
Reduction Gear Ratio	1:29
Oil Capacity of Gearbox	200ml
Working Width	650mm
Productivity per hour	0.04~0.06hm2 (h/m)
