Efficient Brushless Linear Motor with 3 Phase AC 380V Power

Product Description

Product Description
Albert smart hybrid ac servo drive with high quality 11kw 15kw 18kw 22kw 30kw 37kw 45kw 55kw 75kw
Why need servo control system:
When using a hydraulic system, the power consumption is more than 75% of the whole injection system. Different pressures and flows are requireed during the process, including mold closing, injection, holding pressure and mold opending. When the flow and pressure requirements exceed the settings, the relief or proportional valve will be adjusted, resulting in a 40%-75% higher power consumption.
The servo control system advantages:
1. Ultra energy saving:
Save up to 60% compared traditional injection molding machine(60%) fixed displacement
depend on the different injection conditions, can save up to 80% at the most.
2. Low system temperature
decrease system temparature by 5-10°C to save cooling costs.
3. Highly accurate repeatability
result in accurate control of flow and pressure
4. Long pressure holding time: benifit to thick product manufacture
5. Good frequency response rate: up to 50 ms
Efficient Brushless Linear Motor with 3 Phase AC 380V Power

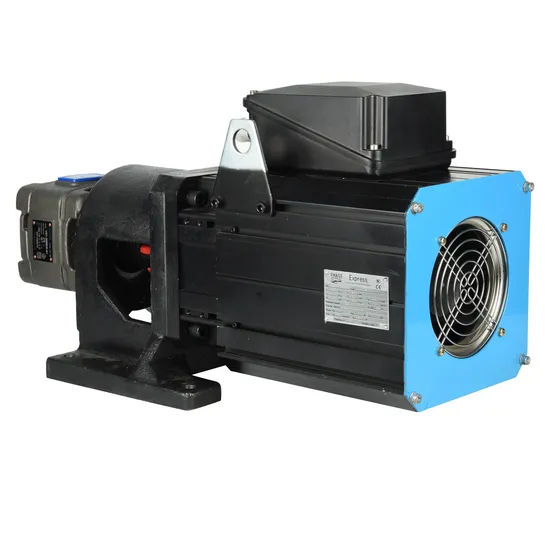

Detailed Photos

Configurations
NVICKS standard configurations:

Pump displacement mL/r	Pressure Mpa	Max Speed r/min	Sumitomo pump Model	Delta servo driver	Phase Servo Motor	Pump Stand shaft Coupling	Pressure Sensor	Proportion Valve	Signal Coverting Board
32	14	2000	QT42-31.5	VFD110VL43A-J 11KW	1005F17.3 10KW	BTJ-01	Italy GEFRAN	03 small size	0-1A to 0-10V
40	14	2000	QT42-40	VFD150VL43B-J 15KW	1007F17.3 14KW	BTJ-01	Italy GEFRAN	03 small size	0-1A to 0-10V
50	14	2000	QT52-50	VFD185VL43B-J 18.5KW	1008F17.3 17.6KW	BTJ-02	Italy GEFRAN	03 small size	0-1A to 0-10V
63	14	2000	QT52-63	VFD220VL43B-J 22KW	1010F15.3 20KW	BTJ-02	Italy GEFRAN	03 small size	0-1A to 0-10V
80	14	2000	QT62-80	VFD300VL43B-J 30KW	1013F17.3 28.7KW	BTJ-06	Italy GEFRAN	06 Big size	0-1A to 0-10V
100	14	2000	QT62-100	VFD370VL43B-J 37KW	1315F15.3 29KW	BTJ-06	Italy GEFRAN	06 Big size	0-1A to 0-10V
125	14	2000	QT62-125	VFD450VL43B-J 45KW	1320F17.3 39.4KW	BTJ-07	Italy GEFRAN	06 Big size	0-1A to 0-10V

For bigger pressure requirements, pls contact us for the matched configurations! Product Parameters

Driver power supply parameters and control terminal model
Model	Rated Power	Rated output current	Rated input current	Voltage frequency	Voltage range	Control board model
ABT680-T-011	11KW	25A	26A	Three phase 380V AC, 50/60Hz	340~456V AC	74 control board
ABT680-T-015	15KW	32A	34A			46 control board
ABT680-T-018	18.5KW	37A	38A
ABT680-T-022	22KW	45A	46A
ABT680-T-030	30KW	60A	62A
ABT680-T-037	37KW	75A	76A
ABT680-T-045	45KW	91A	92A
ABT680-T-055	55 KW	112A	113A
ABT680-T-075	75 KW	150A	151A
ABT680-T-090	90 KW	176A	180A
ABT680-T-110	110 KW	210A	214A
ABT680-T-132	132 KW	253A	256A
ABT680-T-160	160 KW	304A	307A

Installation Instructions

Applications
Some Exhibitions we took part in, more fairs will be hold~ Q&AQ1, are you supplier or manufactuer? A1: we are manufactuer in Ningbo, Zhejiang Province, China Q2, shall I get 1 pcs sample for a try. A2: Yes, of couse. You can. Q3: how many days for mass production. A3, in the fact, we will make the products for 15-25days. Besides, we will prepare them in order of production line. If you need urgently, pls inform me in advance. we can process it in rush as soon as possible. Q4: Is it can be replaced with original ones? A4: Absolutely, yes. It is 100% similar with original one. Q4, It is good with package. A4: Yes. nice package which goods is no damaged when you received. Our services
Our Advantages
1. Top Quality
Depend on 15 years experience at pumps design and manufacturing, we have a top quality compared with domestic and overseas manufacturers, all of our products are with 1 year warranty time.
2. Strict Quality Control System
We have the most strict quality control system, all of our products are 100% tested before shipment and each of them has one tracking code in order to make sure they are with good quality to our customers.
3. Advanced machinery equipment
All the machines are new CNC machines we imported from Germany and Japan in order to reach more higher demand at the products accuracy.
4. Strong Technical team
Our technical team all have more than 20 years experience at pumps design and engineering, our chief engineer has more than 40 years experience at pumps design. We have one 15 persons research team, responsible for pumps improvement research and new products development.
5. Competitive Price
Because of good management, our price is more competitive than the original products, more reasonable than most of the domestic suppliers.
6. Fast Delivery time
We can ship small orders within one week, for big orders such as within 100 sets of servo systemsusually we can make shipment within one month.
7. Warranty Period
All of our products are within 1 year warranty period after the shipment from our factory.
8. Considerate Service
We can provide technical support at any time if our customers meet any issue during the using, we will provide solutions at the soonest time.
9. Long development strategy
We would like to establish a long time strategy cooperation relationship with our customers, to promote Albert brand together, support and train the potential customer to be our agent at each country and region all over the world.

---
