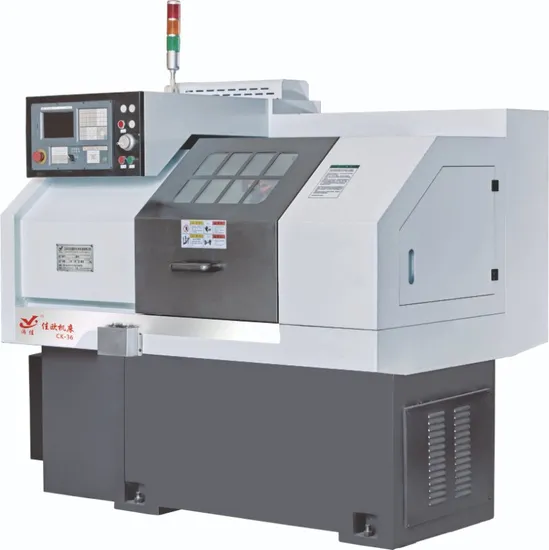

Compact Flat Bed CNC Lathe Machine with Gang Tool

Product Description

Product Description
Flat Bed Structure with Gang Tooling System
The flat bed design minimizes vibrations and enhances precision, making it ideal for light cutting, precision, and high-speed processing.
Optional Live Tooling for Milling Operations
Our lathe can be customized with live tooling, enabling both turning and milling functions within a single setup. This integration streamlines workflows and reduces processing times.
High-Quality Precision Components
Incorporating precision parts sourced from Taiwan, Japan, and Germany, our machine ensures exceptional accuracy, reliability, and longevity, meeting the stringent demands of modern manufacturing.
Optimized for Batch Production
Designed to handle simple, large-batch metal workpieces efficiently, this lathe significantly shortens processing times, enhancing productivity and throughput.
Product Parameters

Machining Capacity	Swing over bed	mm	ф400
	Swing over carriage	mm	ф150
	Max turning dia	mm	-
	Max bar material size	mm	ф36
Spindle	Spindle nose	-	A2-5
	Spindle bore	mm	ф49
	Spindle motor power	kw	4
	Chuck size	inch	optional
	Spindle speed	rpm	200-3000
Axes specs	Axes travel	mm	X520 Z300
	Axes fast moving	m/min	X18 Z20
	Repeatable positioning accuracy	mm	X0.003 Z0.005
Tool type	Gang tool	-	Gang tool
	Tool holder size	mm	20*20
Other specs	Programming		ISO standard
	Cooling motor	w	120
Measurements	Dimension	mm	around 1850*1250*1700
	Weight	kg	around 1500

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

---
