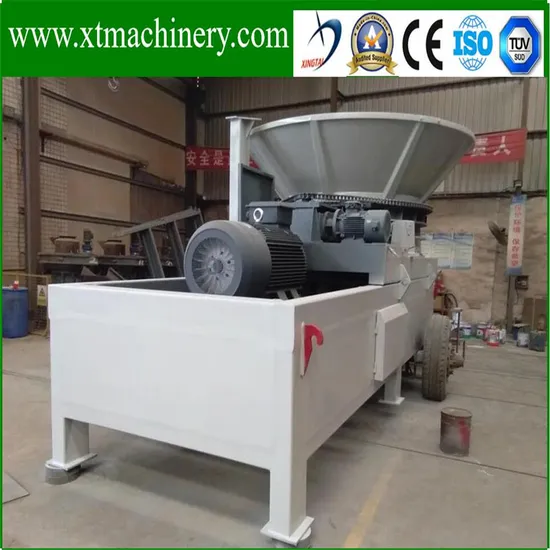

Siemens Motor Power, 2150mm Rotor Length Tree Root Chipper

Product Description

Wood chipper machine brief introduciton
Stump grinder is mainly used for producing wood chips from tree roots, stump, which is the main raw material of biomass factories and also curhsing baled straw.
Characteristics
Tree stump shredder is a special equipment for cutting tree stumps in biomass power plant.It is widely used in the material preparation section of biological power plant.The main cutting material of this machine is wooden block.The machine has reasonable structure, simple operation, high production capacity, safe and reliable and convenient maintenance.Is a relatively advanced domestic stump crushing equipment.The company can also according to customer requirements to improve the product and design.
Application
Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, straw, etc.
Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufature

Detailed Models For Wood Stump: Specially cut the wood stump into small mulch or chips with size 20mm-50mm
Model	XT-3000		XT-3300		XT-3600
Rotor diameter	650mm		750mm		750mm
Blade numbers	2-6 pieces		2-6 pieces		2-6 pieces
Running speed	960r/min		960r/min		1405r/min
Mesh screen size	Φ 50 or customerized		Φ 50 or customerized		Φ 50 or customerized
Main power	160KW		220KW		250KW
Feeder power	5.5KW		7.5KW		7.5KW
Discharge power	5.5KW		7.5KW		7.5KW
Oiling Power	3KW		3KW		3KW
Top feed-inlet size	3000mm		3300mm		3600mm
Bottom feed-inlet-size	1600mm		2000mm		2300mm
Maximum stump diameter available	1200mm		1600mm		2100mm
Output capacity	10-15Ton/Hour		15-20Ton/Hour		20-25Ton/Hour
Machine weight	8.9Tons		18.7Tons		24.8Tons

---
