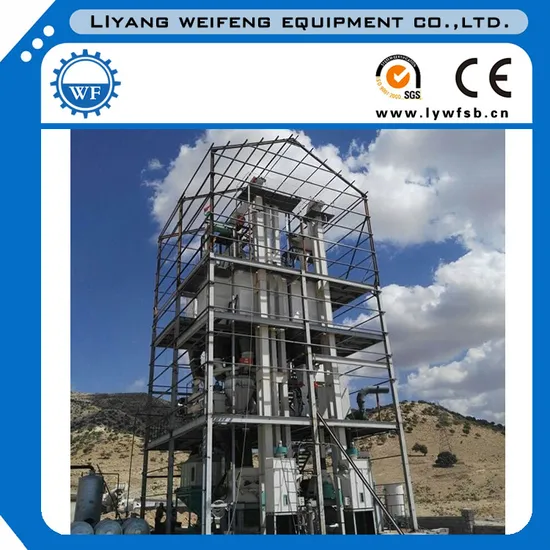

1-10t/H Premix Feed Production Line

Product Description

Company Profile
About our factory
Our factory Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer specialized in designing, making high quality feed pellet mill and building turn key feed pellet production line,premix feed production line, concentrate feed production line . With 20 years' experience, professional technical R&D team.
We had built 1-30t/h feed pellet production lines(chicken feed pellet lines, cattle feed pellet lines, fish feed pellet lines and so on) in: Russia, Romania, Thailand, Malaysia, Ukraine, Iraq, Algeria and so on.
Process
Total process for premix feed production line
Raw material receiving →Grinding →Mixing →Packing
Detailed processes of feed pellet mill line, poultry feed production line
1. Raw materials receiving Process:
Raw materials can be corn, rice bran, soybean, grain, wheat, soybean meal / cake and etc. Precleaner can remove the impurities in raw materials.
2. Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. There are various hammer mills which can satisfy different requirements.
3. Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality.
4. Packing Process
The premix feedshould be packed for transporting, storing or selling.
8. Automatic PLC Control System(Customized):
With the automatic PLC control system, the production line is with high efficiency and convenient operation

Main technical parameters
1. Grinding process----Hammer mill SFSP

Item				66*40		66*60	66*80		66*100		66*120
Rotor diameter (mm)				660		660	660		660		660
Spindle rotate speed (rpm)				2960		2970	2970		2980		2980
Hammer line speed (m/s)				102		102	102		102		102
Grinding room width (mm)				400		600	800		1000		1200
Hammerquantity(fine grinding)				40		56	84/116		120		136
Power( kw)				37	45	75	90	110	132	160	200	220
Capacity(t/h)				1-3	2-5	5-7	6-8	8-10	10-12	12-15	15-20	20-25
Normal air volume ( m3/min)		Fine grinding		55	60	78	95	102	145	155	190	205

2. Mixing process----Mixer SSHJ

Item	Effective Capacity(M3)	Mixing amount(KG)	Mixing time(S)	Mixing	Power(KW)
				homogeneity(CV%≤)
SSHJ0.1	0.1	50	30~120	5	2.2(3)
SSHJ0.2	0.2	100	30~120	5	3(4)
SSHJ0.5	0.5	250	30~120	5	5.5(7.5)
SSHJ1	1	500	30~120	5	11(15)
SSHJ2	2	1000	30~120	5	15(18.5)
SSHJ3	3	1500	30~120	5	22
SSHJ4(s)	4	2000	30~120	5	22(30)
SSHJ6(s)	6	3000	30~120	5	37(45)
SSHJ8(s)	8	4000	30~120	5	45(55)

Our services
(1) Warranty time: 1-3 years, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
(2) Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
(3) Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
(4) Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
(5) Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
Contact us
Welcome to visit our feed machine factory, our factory is near Nanjing Lukou Airport and Shanghai Pudong Airport.
Best Regards.

---
