Atex Approved Overfill/Overfilling Prevention/Protection & Anti-Static/Earthing/Grounding/Bonding System

Product Description

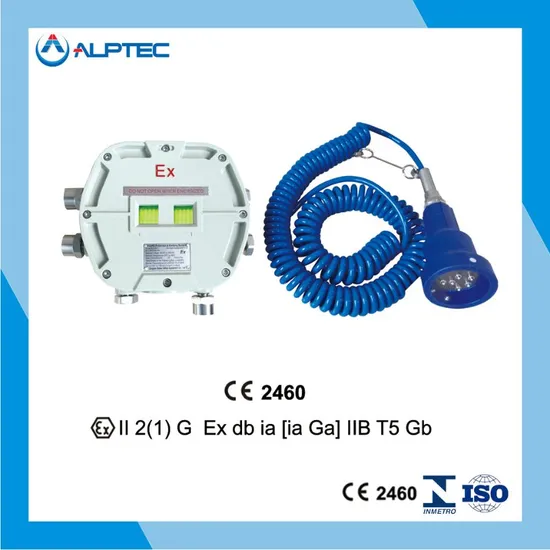

Atex Approved Overfill/Overfilling Prevention/Protection & Anti-Static/Earthing/Grounding/Bonding System Product Description
The ATEX approved "Overfill Protection and Earthing Systems" are designed for bottom loading of tank trucks, rail cars, etc. In the event of an overfill condition, the overfill sensor will send a signal through the output relay to the terminal automated loading system to shut down the loading operation. The systems provide overfill protection as well as grounding verification.
Product Parameters

Product Name:	Atex Approved Overfill/Overfilling Prevention/Protection & Anti-Static/Earthing/Grounding/Bonding System
Input Power:	85VAC to 250VAC 50Hz
Input Current:	<60mA
Output Signal:	On-Off signal
Monitoring Set Point:	10 ohms
Alarm:	Visible alarm
Spiral Cable:	Extendable to 8m (26ft.)
Output Safety Parameters:	Um:250VAC,Uo:21.42VDC,Io:149mA,Po:798mW,Co:1.19μF, Lo:6.4mH (for overfill sensor )
	Um:250VAC,Uo:14.28VDC,Io:96.2mA,Po:343mW,Co:4.28μF, Lo:15.4mH (for earthing senor)
Ambient Temperature:	-20ºC to +55ºC(-4ºF to +131ºF)
EU-Type Examination Certification No.:	Presafe 16 ATEX 8909X
QAN Certificate No.:	Presafe 16 ATEX 7744Q
Standard:	EN60079-0, EN60079-1, EN60079-11
Applicable Directive:	2014/34/EU

Composition

Features & Benefits

1. Static Protection Ground Monitoring Device is ATEX approved.
2. Module integrated design, easy to install and maintain.
3. Flameproof enclosure: Incorporating Intrinsically Safe Static Grounding Monitoring System. Vehicle static earthing system can be used outdoors for controller's degree of protection is IP65.
Working Status
Related Products
Certifications

Packaging & Shipping

Company Profile
Established in 1996, Qingdao Alptec Safety Equipment Co., Ltd specialises in the design, manufacture, and supply of high-quality Overfill Protection as well as Static Grounding Systems, Earthing Clamps, Reels and accessories for the chemical, petrochemical, oil and gas and process industries that transport, store, transfer and use flammable liquids, solvents or combustible liquids in hazardous areas.
Alptec is Sinopec and PetroChina's preferred brand and we have secured more than 50% of the market share in China. Internationally we began exporting in 2006 to Germany, Spain, USA, Canada, Australia &New Zealand, Korea, Singapore, Thailand, Vietnam, Mexico, Brazil, South-Africa, India, and many other countries.
Our Advantages

1. Sufficient Inventory; we have 100 pcs in stock.
2. Alptec is Sinopec and PetroChina's preferred brand and the supplier of big companies; such as BP, PPG, Total, Shell.
3. We participate in international exhibitions every year and welcome customers to visit.
1). ADIPEC 1-4 November 2010 in UAE
2). STOC EXPO EUROPE 2012 in Rotterdam
3). NACS Show 2012 in Las Vegas
4). STOC EXPO Asia 2014 in Singapore
5). 16th Pakistan Oil & Gas Exhibition - POGEE 2018
6). STOC EXPO EUROPE 26-28 March 2019 in Rotterdam
7). OIL & GAS Thailand 09-11 October 2019
4. Excellence in the industry with over 26 years' experience
5. Good reputation; the failure rate was 0.1% in the past dozen years, .
6. High quality guaranteed; 2 years warranty
7. Competitive factory-direct sale price
8. Prompt delivery, it will take 5-7 business day for transportation
9. Good after-sales service; 12 hours to respond to customer requirements, and new accessories will be mailed free of charge during the warranty period.
10. Accept urgent order, large stock to meet your enquiry.

FAQ
Q1:Could you send me a sample before bulk order?
A:Of course, we can give you a free sample ,the sample fees will be returned after placing an order.
Q2:What is the payment method?
A:L/C T/T Western Union.
Q3:What is your supply capacity?
A:Our supply capacity is 200 sets/day.
Q4:When do you deliver it?
A:2 days after payment.
Q5:How soon can my order be shipped?
A: Usually 3 business days after payment.

---
