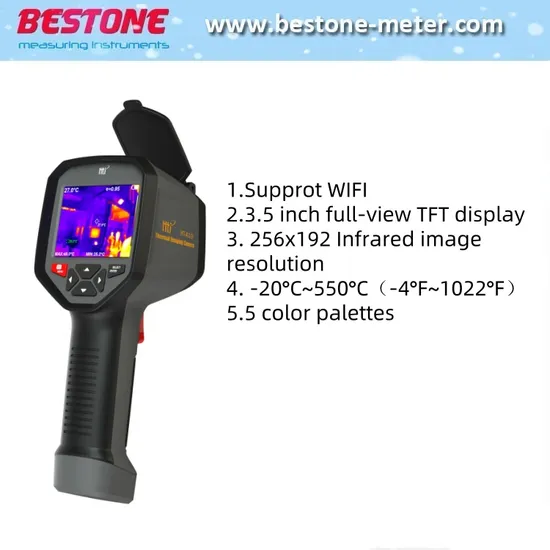

WiFi High Resolution Accuracy 256*192 Handheld Android Cars Smart IR Infrared Thermal Scanners Imaging Camera Imager Ht-A10

Product Description

Product Description Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
Product Feature 1. Connect to WIFI and save synchronously: Parameter Settings can be saved, images can be saved/downloaded. Search this product WiFi via mobile device and access via IP. 2. Infrared + visible light fusion: With visible light 300,000 pixels. Using dual-light imaging technology, Combining the advantages of infrared and visible light, discovery and recognition integration,efficiency improvement. 3. 5 color palettes
4. High and low range switching: Temperature measurement range: -20ºC to +550ºC, wider temperature measurement range, more application scenarios, good equipment, one is enough.
5. 3.5 "large display screen: 3.5-inch full-view TFT display, output high quality infrared images, everywhere detail can be seen.
6. 26650 lithium battery: Charging with USB cable. Working time is about 4 hours. Automatic shutdown more power saving, the time can be selected: 5 minutes /20 minutes/no automatic shutdown.
Product Parameters

Model	HT-A10
Display Screen	3.5 inch full-view TFT display
Infrared image resolution	256x192
Focal length	3.2mm
Field angle	56°(H)x 42°(V)
IFOV	3.75mrad
Working band	8~14um
NETD	≤50mk@25°C, @F/1.0
Image frame rate	25Hz
Focusing mode	Fixed
Emissivity setting	Adjustable from 0.01 ~ 1.00
Color palette	Rainbow, iron, cold color, white hot, black hot
LCD resolution	640x480
Temperature measurement range	-20°C~550°C(-4°F~1022°F)
Measurement accuracy	-15°C~550°C±2°C or ±2%; -20°C~15°C±4°C
Other
Device storage	Built-in 8G (Actually available 6.6G)
Picture /Video format	JPG/MP4
Language	Chinese, English, Italian, German
Power supply	Built-in chargeable 26650 battery detachable
Working time	>=4 hours
Power interface	Type-C USB
Setting command	Unit, language, date, time, information
Automatic power off time	Selectable:5 minutes / 20 minutes / no automatic shutdown
Work temperature	-10°C~+50°C(14°F~122°F)
Storage temperature	-20°C~+60°C(-4°F~140°F)
Relative humidity	<85%RH(non-condensing)
Product size	255.4mmx122.1mmx97.2mm
Product weight	588g

Detailed Photos

---
