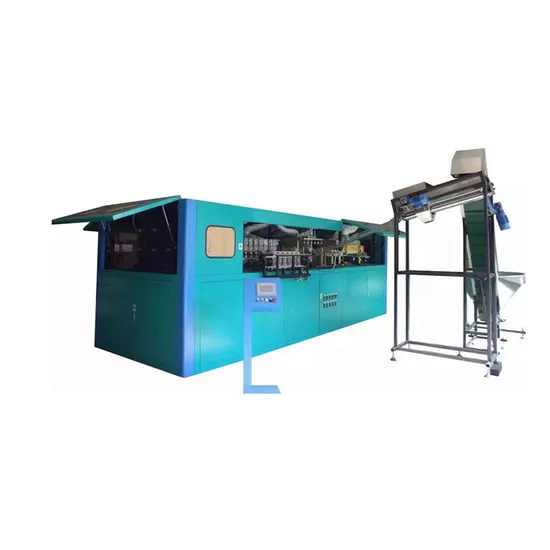

Full Automatic 6000b/H 500ml Plastic Water Bottles Manufacturing Machines

Product Description

Full Automatic 6000B/H 500ML Plastic Water Bottles Manufacturing MachinesProduct Description:
Application:
Suitable for producing PET plastic containers and bottles from 100-1500ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1) Food-grade stainless steel 304 for the parts in contact with product, meet the food industry standard.
2) PLC automatic control with world famous brands like Mitsubishi, Siemens, Omron, etc., good stability.
3) Easy machine operation by using the touch screen like Weinview or Siemens.
4) Standard machine parts, easy to do maintenance work, greatly reduce the maintenance costs and improve work efficiency.
5) Adopting rigid construction sealing, which is not easy to damage and with good leakproofness.
6) Emergency stop and other safety features provide unparallel operator safety.
7) All parts and service plans available.
Machine specifications:

Bottle specification	Max volume of bottle	2000(ml)
	Product material	PET
	Body diameter	Φ68(mm)
	Height	<240(mm)
	Mouth diameter	Φ18 ~ Φ38(mm)
	Max height of preform	≤115(mm)
Main machine power	Power supply	220V/380V
	Rated power	75(kw)
	Real power	30(kw)
Size	L*W*H	4800×2120×2300(mm)
	Weight	5500(kg)
Production capacity	Depend on bottle design	6000b/h(500ml)

Machine components:

System name	Part name	Origin	Remark
Pneumatic part	Valve	USA	PARKER brand
	Cylinder	Germany	FEOSTO brand
Electric part	PLC	Japan	Mitsubishi brand
	Operating system	France	Schneider brand
	Relay	Japan	Omron brand
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.

Flow chart for the Full Automatic 6000B/H 500ML Plastic Water Bottles Manufacturing Machines:
Company Information:
Shine Dew Water Equipment Co., Ltd. is a specialized manufacturer of drinking water treatment equipment, auto bottling machines, labeling machines and other auxiliary equipment, with more than 10 years of experience in China. We have exported our machines to Central and South America, Africa, the Middle East and Southeast Asia. Furthermore, we have completed many turnkey projects of water treatment factories for our customers from the above-mentioned regions. Moreover, we can also provide turnkey services for water bottling plants and beverage production plants.
Our goal is to assist our customers to provide healthy water for human beings. We sincerely hope to develop together with our customers in the field of water treatment industry. We welcome your contact via email, telephone and fax. We will always do our best to serve you.
Certifications:
Main Products:
Reference Project:
Full Automatic 4000B/H 500ML Plastic Water Bottles Manufacturing Machines for a Nigeria Customer:
FAQ:
Q1: Can you provide more information about this product, and quote the best price?
A: Sure, please contact us via any methods showed on this page, and we will send our product catalog, company profile for your reference.What's more, we will customize detailed offer according to your specific requirements.
Q2: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.
Q3: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Q4: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.
Q5: How long of your warranty?
A: Regarding warranty, normally we offer 1 year warranty/3000 hours warranty, and we also offer lifetime maintenance.
Q6. Do you accept OEM order?
A: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
