RM600G Professional Handheld Thermal Camera

Product Details

Product Description

Product Description

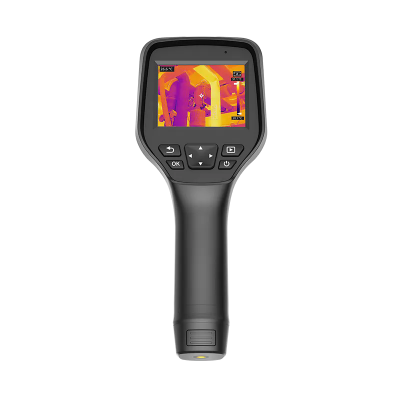

RM600G Professional Handheld Thermal Camera
RM600G is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.
It is equipped with a self-developed 640×512 infrared detector, providing a high sensitivity of 35mK.
It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
FeatureClear Thermal Images, Precise Temperature Measurement
12μm high-performance 640×512 uncooled infrared detector.
NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C.
USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.
Professional Functions, Multi-Dimensional Design
Support full-frame high/low-temperature alarms and scheduled image capture, and record temperature rise changes.
Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
Support professional thermal imaging analysis software on the app, PC.
Hard-Core Configuration, High-End Experience
IP54 and 2m drop protection, solid and durable.
3.5-inch touch screen, 640×480 resolution
Built-in laser pointer module for quick target locating.
SpecificationThermal ImagingImaging DisplayMeasurement and AnalysisImage StorageSystem FunctionsOthers

Detector TypeUncooled infrared detectorInfrared Resolution640×512Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate30HzLens Focal Length9.1mmFOV48°×38°Spatial Resolution (IFOV)1.31mradFocusing ModeManual focusingMeasurement Range-20°C~+150°C, 100°C~550°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater
Display3.5-inch touch screen, 640×480 resolutionVisible Light Camera5 megapixelsDigital Zoom1×, 2×, 4×, 8×Palettes10Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAutomatic/Manual
Analysis Functions on the DeviceCustom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature displaySupporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Storage MediumStandard 32GB MicroSD, up to 512GText NotesSupportVoice AnnotationSupportImage NamingAuto/manual naming, naming by scanning QR code
Communication ProtocolWi-Fi, USBVideo TransmissionSupport UVC video transmissionLaser PointerSupport
BatteryRechargeable and detachable lithium-ion batteryCharging ModeUSB Type-C or desktop chargerBattery LifeAbout 6h (about 3h for a single battery)InterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 670g, 258.4×105.1×102.3mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box

Application Scenarios

Electrical Maintenance

Equipment Maintenance

Product R&D

Electric Routine Inspection

Company Profile
Raythink Technology Co., Ltd.
Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
