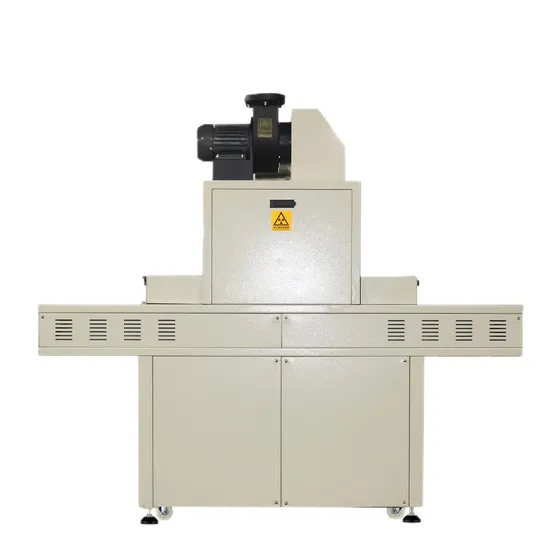

UV Glue Ink Drying High-Power Production Line UV Ink Screen Printing Drying Curing Furnace

Product Description

Product Description 1, Scope of application of UV curing machine:Four lamp UV dryer is suitable for UV primer, topcoat, floor, furniture, cabinet board, glass, ceramic tile, metal plate, etc.This equipment is mainly used for drying the paint of panel furniture, cabinet board, floor, metal plate and bamboo and wood blinds after UV coating;2, Features of UV light fixing machine:1. Instant drying, saving time and high production efficiency.2. It can make the printing piece achieve high gloss, friction resistance and solvent resistance.3. The conveyor belt has stepless speed regulation and anti offset device to ensure smooth transportation.4. Each set of UV system is controlled independently, and the number of lamp tubes is turned on according to the production.5. Special aluminum magnesium alloy lampshade is adopted, and the concentrating design is of high production efficiency.6. The working current of UV lamp can be controlled by external indicator needle, which can effectively master the working state of UV machine.7. Equipped with reasonable heat dissipation system, the dynamic temperature should be kept at ≤ 60 ° C.8. The heat can be discharged from the outdoor through the heat removal system, and the production and working environment can be effectively protected.
Click to learn more.....
Detailed Photos


Product Parameters

Wavelength	365nm
Uv lamp curing lenth	450mm
Uv lamp total lenth	550mm
Max thickness of cured	Curing products are recommended within 400mm
Uv lamp power	5.6kw * 3 lamps
UV lamp installation location	At the top, ultraviolet light shines down
Control UV lamp mode	1)UV transformer and UV capacitor,50HZ 380V2)UV lamp power strong light, low light adjustable3)UV lamp is controlled separately
lamphose	Aluminum curved lamp shade plus imported reflector Lamp bracket up and down distance, Angle can be adjusted

Click to learn more.....
Company Profile FAQ

1.Provide pre-sale and after -sale technical consultation.2.Provide 24 hours consultations technical support after sale.3.Provide technical support for training technicians.4.Provide technical consultation and support for mechanical equipment.5.Provide UV equipment configuration improvement , installation proposal technical support.6.In general, door-to-door service is not supported. If door-to-door service is required, a round-trip fee for personnel is required.7.Normal use of the machine quality problems limited free warranty for 1 to 5 years, lifelong maintenance services, parts of the parts of the supplier to provide free on-site service.

---
