Lsz3000d Diesel Powered Gunite Machine South Africa

Product Description

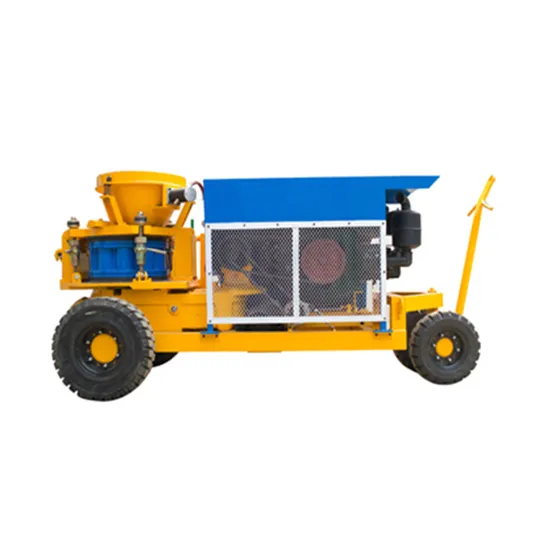

LSZ3000D Diesel powered gunite machine South Africa
1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
LSZ3000D with diesel engine can offer you different brand diesel as per your need.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3. Features:
It can both for dry and shotcrete concrete spraying.

Drive type	diesel engine
Output Capacity	3-5m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Max. Aggregate Size	15 mm
Conveying Hose Inner Diameter	Dia.64 mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m 3 /min(357-430CFM)
Material Charging Height	1.1m
Rotor Speed	7.5-11r/min
Diesel Engine	22hp,2200rpm
Diesel Engine Starting	Electric start
Clutch Type in Diesel Engine	Automatic Clutch
Air Vibrator	OR100,Oli
Overall Dimension(length×width×height)	2.55×1.05×1.25m
Dosing pump model	BHA530 Dosing tank
Net Weight	1300kg

---
