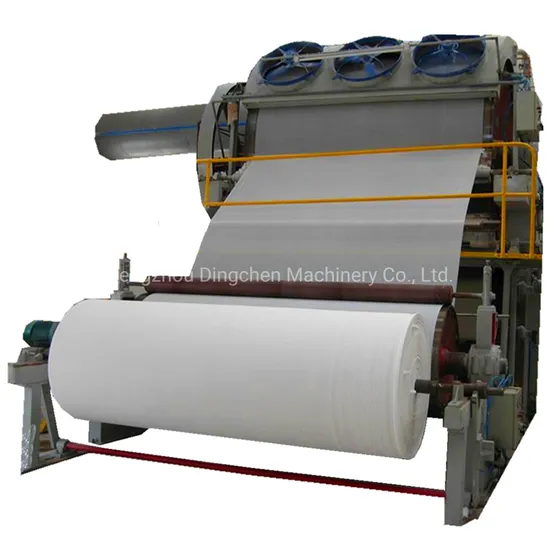

Medium Size Toilet Paper Making Machine

US$240,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1880mm
Certification
ISO
Condition
New
Control
Semi-Automatic
Embossing Type
Full-Embossing
Embossing Roller
Wool Roller
Toilet Paper Type
With Core
Function
Multi-Function
Installation
Engineers Will Be Sent to Install
Plant Design
Free
Test Run
Free
Training
Free
Type
Lavatory Paper
Sheet Former Type
Cylinder Mould
Paper Thickness
Thin Paper
Automation
Automatic
Customized
Customized
Transport Package
Standard Export Package
Specification
ISO
Trademark
Dingchen
Origin
Qinyang City, Henan Province
HS Code
84392000
Production Capacity
100sets Per Year

Product Description

1880mm toilet paper production line for capacity 5t/d
I.Technical parameter
1. Raw material recycled paper
2. Output paper toilet paper
3. Output paper weight 15-30g/m2
4. Capacity 5 tons per day
5. Cylinder mold width 2300mm
6. Net paper width 1800mm
7. Working speed 70-150m/min
8. Designing speed 200m/min
9. Rail gauge 2800mm
10. Drive way Alternating current frequency converter speed control, sectional drive.

II. The main structure with spec

1 . Cylinder mold part
1 set of φ1500mm×2300mm×2800mm stainless steel cylinder mold, 1 set of 450mm×2300mm×2800mm couch roll, coated by rubber, rubber shore hardness 38ºC±2.

Dryer part
1 set of 2500mm×2300mm×2800mm alloy dryer drum, 1 set of 500mm×2300mm× 2800mm touch roll, rubber shore hardness 90ºC±2. Pneumatic pressure device. There is double-layer dryer hood.

Winding part
1 set of 1000mm×2300mm×2800mm winding cylinder.

Rewinding and cutting part
1 set of 1880mm rewinding machine with embossing and perforating.
1 set of tissue paper cutting machine. Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
