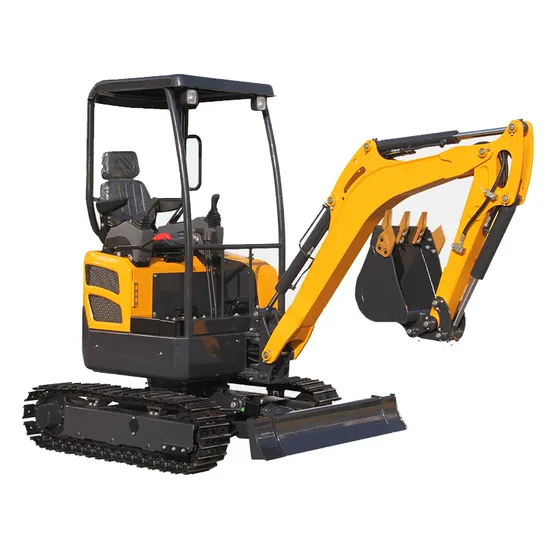

Factory Hot Sale Reliable Quality Customized 2 Ton Chinese Mini Excavator

Product Description

2 ton Excavator (20)
We can customize all the accessories in the above picture for you. Product Parameters

Performance Parameter
Overall dimension (L*W*H)	3555 * 1300 * 2290 mm
Axle base(Track length on ground)	1230 mm
Track gauge	760 mm
Min.Ground clearance	150 mm
Swing radius at tail	650 mm
Track System
Maximum Travel speed	4 km/h
Width of track shoe	230 mm
Number of track shoe per side	38 pcs
Number of upper roller per side	1
Number of bottom roller per side	3
Performance Parameter
Standard bucket capacity	0.07 m³
Swing speed	9 rpm
Max. Grade ability	35°
Max. Bucket digging force	18 KN
Max. Arm digging force	11 KN
Hydraulic system pressure	21.5 Mpa
Machine weight	2000 kg
Engine
Emission Standard	Euro 5/EPA
Engine Brand	Kubota
Power/Rotation speed	14.1kw(20HP) 2000rpm
Number of cylinder	3
Working Range
Max. Digging height	3700mm
Max. Dumping height	2440mm
Max. Digging depth	2400mm
Max. Vertical digging depth	2025mm
Max. Digging radius	4040mm
Min .swing radius	1610mm
Max. Lifting height of blade	240mm
Max. Cutting depth of blade	270mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!

---
