Automatic C Zshaped Purlin Quick Change Size Roll Forming Machine

Product Description

Product Description

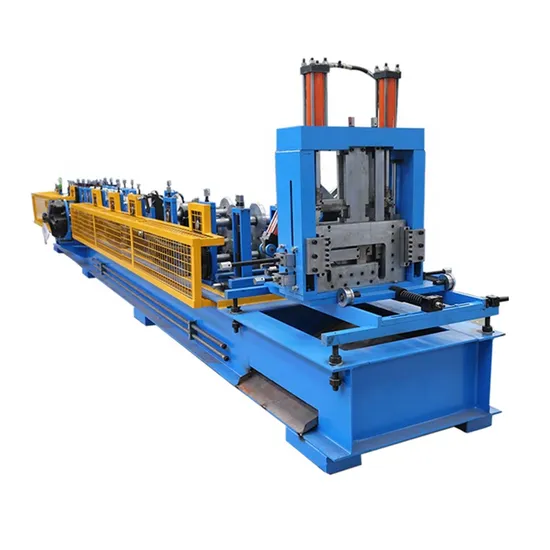

Automatic C Zshaped Purlin Quick Change Size Roll Forming Machine
We have lots series for your reference. For example, standard CZ. Heavy duty and big scale CZ purline like the picture. Please according to the sizes and supported material thickness to choose the proper mode rolling forming machines.

Automatic C Zshaped Purlin Quick Change Size Roll Forming Machine
1.Formed Material	PPGI,GI,AI		Thickness:1.5-3mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free)
3.Main body	Roller station		12 rows(As your requirement)
	Diameter of shaft		80mm solid shaft
	Material of rollers		Gcr 15 with quenched teeatment
	Machine body frame		Metal steel welded
	Drive		Chain transmission
	Dimension(L*W*H)		9000*800*1200(customize)
	Weight		About 6.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		15KW
	Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
	Language		English(Support multiple languages)
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	60-70m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

To make sure more easy to choose, we make CZ purline machine, C purline machine and Z purline machine in the following mode: Mode 1:
C purline rolling forming machine MC,LS(LS21,LS31) MC
1. The forming and shearing method is punching and shearing after forming
2. Production specification C width (50~250) mm; Small side (8~20) mm and small side ≤ 0.39 * waist height; Waist height (25~60) mm and waist height ≤ 1.4 * (bottom width - small side - 21); 3. The plate thickness t (1.0~2.5) mm is adjustable; Q195/q235 plate thickness to 2.5mm under normal pressure, q345/355 manganese high-strength plate to 2.0mm under normal pressure and occasionally to 2.5mm 4. Standard configuration: one group of single hole and one group of double holes
Mode 2:
C purline rolling forming machine LS75-300(LS21/LS31)
1. LS21 punching shearing mode is punching shearing after forming, LS31 punching shearing before forming+shearing after forming
2. C width (75~300) mm; Small side (8~20) mm and small side ≤ 0.37 * waist height; Waist height (30~80) mm and waist height ≤ bottom width - small side - 20;
3. The plate thickness t (1.0~3.0) mm is adjustable; Q195/q235 plate thickness to 3mm under normal pressure, q345/355 manganese high-strength plate to 2.5mm under normal pressure occasionally to 3.0mm 4. Standard configuration: one group of single hole and one group of double holes
CZ integrated rolling forming machine SX series (SX10, SX20)
SX10 is post-forming punching shear, SX20 is pre-forming punching shear+post-forming shear
1. C width (75~300) mm, Z width (120~300 mm); Small side (8~20) mm and small side ≤ 0.8 * (waist height - 20); Waist height (30~80) mm and waist height ≤ 1.2 * (bottom width - small side - 30);
2. The plate thickness t (1.0~3.0) mm is adjustable; Q195/q235 plate thickness to 3mm under normal pressure, q345/355 manganese high-strength plate to 2.5mm under normal pressure occasionally to 3.0mm
3. A group of single holes and a group of double holes are equipped as standard SX series version (traditional hydraulic motor version (22KW), traditional ordinary motor version (18.5KW+11KW), intelligent version (servo motor 22KW+11KW))
CZ integrated rolling forming machine LN series (heavy duty type)
Punching and shearing before forming+shearing after forming
1. C width (80~300) mm, Z width (120~300 mm); Small side (8~20) mm and small side ≤ 0.8 * (waist height - 20); Waist height (30~100) mm and waist height ≤ 1.2 * (bottom width - small side - 30);
2. The plate thickness t (1.0~3.0) mm is adjustable; Q195, q235, q345/355 can be pressed to 3.0mm in normal time 3. One set of single hole and two sets of double holes are equipped as standard LN series version (traditional hydraulic motor version (22KW), traditional ordinary motor version (22KW+11KW), intelligent version (servo motor 30KW+11KW))
Process Drawing
Company Profile

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.
Why Choose Us
1.Stepless rapid type change roller forming equipment | motor | servo motor | hydraulic pressure.
2. Strong upgrading of professional performance.
3. N series breaks through conventional specifications in purlin production.
4. With multi-version models, it has fast board output and stable output power.
5. High precision type change, high durability and other characteristics can meet your production needs under different conditions.
6.Higher accuracy of double alignment 10-roll CZ special two-axial alignment+four-roll two-axial alignment double-alignment system, easily improve the accuracy of C-type and Z-type.
In the punching part, our frame of punching die holder much more strong, and also the oil pipe, we use high pressure type. Strong in rollers design but with Conical design, in this way, it can make sure more beautiful but more strong when using.
Our Customers
Packaging & Shipping
FAQ
Q: Can one machine only produce one size?
A: Not exactly, it depends on the machine.
Q: Do you have after-sales support?
A: Yes, we are happy to give advice and also have skilled techniciansavailable to maintain the machine if needed.
Q: How to visit your company?
A: We can pick you up from Shanghai or Hangzhou airport. Or railwaystation Shaoxing North.
Q: What can you do if the machine is broken?
A: Our machine's warranty period is 12months. if the broken parts can'trepair, we can send the new parts to replace the broken parts, butyou need to pay the express cost by yourself. if after the warrantyperiod, we can through negotiation for solving the problems, and wesupply the technical support for the whole life of the equipment.
Q: Can you be responsible for transport?
A: Yes, please tell us the destination port or address. we have rich expe-rience in transport.
Q: You are a trade company or factory?
A: We are a Manufacturer.
Q: Why your price is higher than others?
A: As we persist on that each factory should put quality in the first place.We spend time and money on developing how to make machinesmuch more automatic, accurate, and high quality. We can make surethat our machine could use more than 20 years without any problem.
Q: Do you have overseas engineers?
A: Yes, we not only provide overseas engineers but also provide techni-cal training.
Q: Do you provide customized?
A: Sure, we can design the equipment according to the data of thestructural section you provide. We are a professional sheet metalforming machine designer and manufacturer.

---
