RAM-Type Universal Milling Machine and Horizontal Miller

Product Description

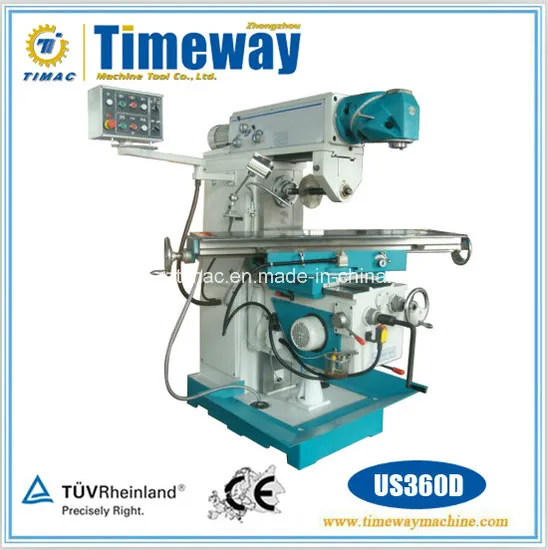

Ram-type Universal Milling Machine and Horizontal Miller
US360D
Features:
Sturdy, zero-backlash box guideways.
Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
Large workarea of 1500*360mm and table load capacity up to 450kgs.
Quiet, preicison-made headstock gears with hardened and ground gears.
Universal cutter head swivels on 2 levels quick change over from horizontal to vertical machining.
By combining both swivel levelsm almost any abgle can be set.
Automatic table feed on X and Y and Z axes, including rapid feed.
Control panel swings out to either side and DRO is optional.
Coolant system and chip tray are included.
Technical Parameter

Specification	Unit	US360D
Spindle taper	-	ISO50
Distance from horizontal spindle center to table surface	mm	30-510
Spindle speed	rpm	12steps 60-1800(V) 60-1750(H)
Table size	mm	1500*360
Max. rotation angle of table	deg	±45°
Table manual feeding travel(X/Y/Z)	mm	900*390*500
Table power feeding travel(X/Y/Z)	mm	860*350*450
Longitudinal feeding speed of table(X)	mm/min	30-600(8steps)
Cross feeding speed of table(Y)	mm/min	22-410(8steps)
Vertical feeding speed of table(Z)	mm/min	15-220(8steps)
X-axis rapid feed speed	mm/min	1300
Y-axis rapid feed speed	mm/min	1200
Z-axis rapid feed speed	mm/min	600
Feed motor power	kw	1.1
Max. weight of workpiece	kgs	450
T-slot(Number/width/distance)	mm	3/18/70
Vertical guideway type	-	Rectangular guideway
Cross guideway type	-	Rectangular guideway
Longitudinal guideway type	-	Dovetails guideway
Main motor power	kw	4
Coolant pump power	w	90
N.W/G.W	kgs	2350/2600

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
