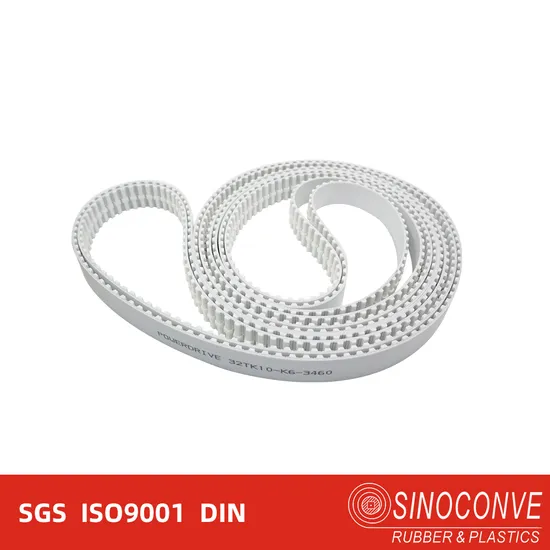

3m 5m 8m Rubber Industrial Machine Timing Belt

Product Description

Product Description
Property
--- Excellent dynamic curve performance
-- Crack resistant
-- Ozone resistant
-- Anti-aging
-- Heat resistant
-- Wear resistantStructure
Belt body: high quality synthetic CR rubber
Reinforcement: excellent quality fiberglass cord
Belt teeth: protected by highly wear resistant nylon elasticfabricDouble sided timing belt
Double sided timing belt can be divided into two types:
-- DA with symmetrical teeth
-- DB with staggered teethTiming belt sleeve
Height: 450mm
MOQ: 1 sleeve
Sleeve cutting machine is availableSpecification

T-toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	2y°	s	hg	rr	ra	H
	MXL	2.023	40	1.14	0.51	0.13	0.13	1.14	43~2044	87.38~4153.41
	XXL	3.175	50	1.73	0.76	0.20	0.20	1.52	46~124	146.05~393.70
	XL	5.085		2.57	1.27	0.38	0.38	2.3	22~510	111.76~2590.80
	L	9.525	40	4.65	1.91	0.51	0.51	3.6	23~530	219.08~5048.25
	H	12.700		6.12	2.29	1.02	1.02	4.3	29~440	368.30~5588.00
	XH	22.225		12.57	6.35	1.57	1.57	11.2	53~220	1177.93~4889.50
	XXH	31.750		19.05	9.53	2.29	2.29	15.7	56~144	1778.00~4572.00
	T2.5	2.5	40	1.50	0.70	0.2	0.2	1.3	42~312	105.00~780.00
	T5	5		2.65	1.20	0.4	0.4	2.2	30~400	150.00~2000.00
	T10	10		5.30	2.50	0.6	0.6	4.5	34~536	340.00~5360.00
	T20	20		10.15	5.00	0.8	0.8	8.0	61~181	1220.00~3620.00

HTD-toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	2y°	s	hg	rr	ra	H
	3M	3	14	1.78	1.17	0.24-0.30	0.87	2.4	35~1000	105.00~3000.00
	5M	5		3.05	2.06	0.40-0.44	1.49	3.8	35~852	175.00~4260.00
	8M	8		5.15	3.36	0.64-0.76	2.46	6.0	36~565	288.00~4520.00
	14M	14		9.40	6.02	1.20-1.35	4.50	10.0	56~340	784.00~4760.00
	20M	20		14.00	8.40	1.77-2.01	6.50	13.20	100~260	2000.00~5200.00

STPD/STS-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Fillet radius	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	s	hg	rbb	rr	ra	H
	S2M	2	1.3	0.76	1.3	0.20	0.20	1.36	44~1914	88.00~3828.00
	S3M	3	1.95	1.14	1.95	0.30	0.30	1.94	41~500	123.00~1500.00
	S4.5M	4.5	2.93	1.71	2.93	0.45	0.45	2.81	40~201	180.00~904.50
	S5M	5	3.25	1.91	3.25	0.50	0.50	3.41	30~560	150.00~2800.00
	S8M	8	5.20	3.05	5.20	0.80	0.80	5.30	53~500	424.00~4000.00
	S14M	14	9.10	5.30	9.10	1.40	1.40	10.2	69~322	966.00~4508.00

RPP/HPPD-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Belt thickness	teeth number range	Pitch length
		Pb	s	hg	H
	P2M	2	1.30	0.73	1.3	56~612	112.00~1224.00
	P3M	3	1.95	1.09	2.1	30~621	90.00~1863.00
	P5M	5	3.25	1.81	3.6	36~400	180.00~2000.00
	P8M	8	5.20	2.90	5.5	40~550	320.00~4400.00
	P14M	14	9.50	6.00	10.0	69~327	966.00~4578.00

Applications
Company Information
FAQ
Q1.Can I have a sample order for Timing belt?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Q3. Do you have any MOQ limit for V belt order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on V belt product?
Yes. Please inform us your logo or design before mass production
Q5. How to guarantee your quality?We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.

---
