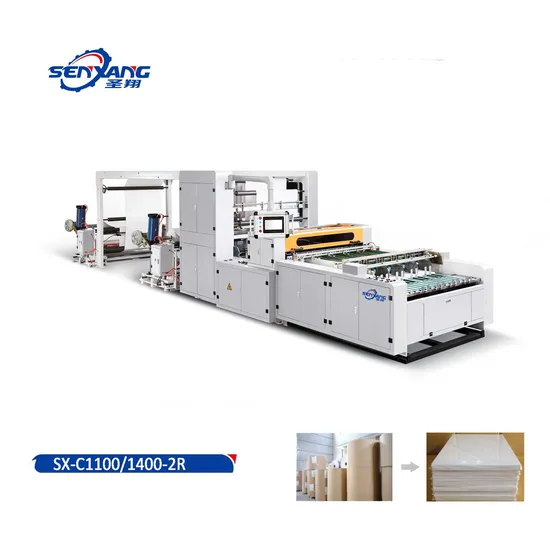

Double Roll High Production Paper Cross Cutting Machine, Automatic Paper Cutter

Product Description

About Shengxiang Ruian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, printing machines, and so on.

Specification

Model	SX-C1100-2R	SX-C1400-2R
Cutting Width	1060 mm	1360 mm
Min Vertical Cutting Width	50 mm	50 mm
Max Diameter of Material	φ1400 mm	φ1400 mm
Length of Cutting	30-400 mm	30-400 mm
Cutting Speed	20-150 times/min	20-150 times/min
Cutting Precision	±0.2 mm	±0.2 mm
Total Power	9.5 kw	12 kw
Weight	5000 kg	6000 kg
Overall Size (L x W x H)	9600*2000*2000 mm	9600*2300*2000 mm

SX-C1100/1400-2R A3 A4 Size Paper Cutting Machine Feature and Characteristic This machine suitable for Cutting all kinds of office paper, high-gloss paper, and paper-plastic composite packaging materials such as roll cutting. 1.The machine adopts PLC touch screen control, servo motor control fixed length cut.
2.Transmission system using pneumatic, photoelectric sensors and other centralized control, the machine collecting light.
Electric. Gas integration, easy operation, high cutting accuracy, mechanical stability, low noise and other advantages.
3.Motor frequency control, automatic counting, alarm parking, magnetic powder tension control. Longitudinal multistage cut, waste edge automatically removed by the fan.
4.Multi-roll at the same time horizontal and Vertical cut.
Machine Details

Heavy Structure Automatic Loading Unit 1. Pneumatic feeding system, suitable for your large roller material 2. Automatic photocell EPC system 3. Heavy structure, running more stable.	Magnetic Tension Control 1. Tension Magnet adopts 10KG/20kg controller, to keep your paper flat and double side under same tension. (Optional shaft less lifting)

7 Inches Big Size Touch Screen 1. Computer position can movable. Big Size, more easy to operate. 2. Taiwan Brand Good Quality Screen.	0.2 mm High Precision Paper Cutting and Collecting1. Two stage convey type, collect neatly. 2. Standard cutting and high efficiency.

Packaging Details
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,commissioning, andtraining How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:(1) Normal operating procedures for equipment training.(2) Knowledge of routine maintenance on equipment training.(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipmentupgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract, the technical parameters,commissioning acceptance of a single report, the relevant technical drawings.
Exhibition
Certification
FAQ
1. Are you a factory or trading company?We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.2. Where is your factory located? How can I visit there?Our factory is located in Ruian City, Zhejiang Province, China,
less than one hour by air from Shanghai. All our clients from home or abroad, are warming welcome to visit us!
3. What about your payment term?
For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
4. Where is your main market?
Our productts are sold well in 30 provinces and have good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries all over the world.
5. How dose your factory do regarding quality control?
Quality is our soul of company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification. 6. What about warranty and do the engineers available to over seas? One year warranty. During this period, if some parts were problem, we will send by courier to you. 7. What about the after sales service? We provide the whole life after sales service. Even after one year warranty, we support the spare partts price without benefit.

---
