Good Price Low Maintenance Wood Chips Gas Biomass Power Generator in China

Product Description

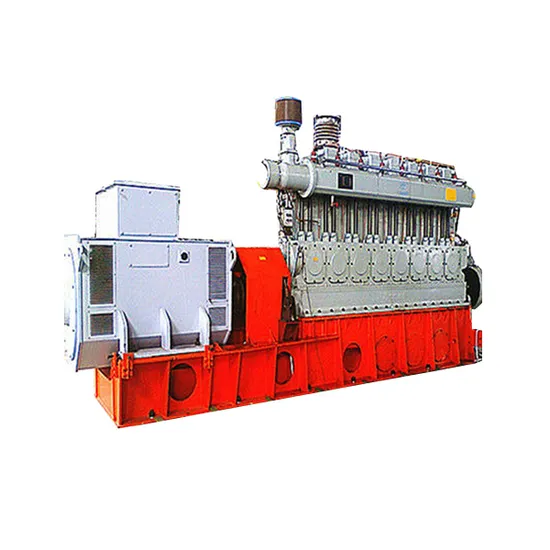

Good Price Low Maintenance Wood Chips Gas Biomass Power Generator in China
Syngas-biomass generations are driven by low speed 300 series engines, the gas fuel can be generated from gasification of MSW, woodchips, sawdusts, rice husks, straws, coconut shells, coal gas, coking gas, coke oven gas and pyrolysis gas etc. Low Speed 300 engines are specially designed for syngas as fuel, with remarkable features of low speed, big cylinder, big displacement, naturally aspirated and strong resistance ability against the TAR, highly reliable, durable, the overhaul can reachover 60000 hours.
Gas Quality Suggested Gas temperature≤40ºC Gas pressure 2.5~10kPa Pressure change rate≤1kPa/min Gas calorific value ≥ 4.0MJ/Nm3 Moisture content≤40g/Nm3, no free water Impurity size≤5μm Impurity content≤30mg/Nm3 Tar content≤50mg/Nm3 H2S≤50mg/Nm3 Total sulfur≤100mg/Nm3 NH3≤20mg/Nm3 C6H6≤50 mg/Nm3 C10H8≤50 mg/Nm3 H2≤60% O2≤1%
Gas Generator Specification

	Item	Technical specification
Engine	Model	6300D/M	6300D/M-1	8300D/M-2	8300D/M-3	9300D/M-1		9300ZLD/M
	Type	Inline, water cooled, four stroke, spark plug ignition
		Non-turbocharged						Turbocharged
	Cylinder number	6		8		9
	Cylinder diameter (mm)	300
	Rated speed(r/min)	500	600	600	600	750		600
	Rated power (kW)	330	440	550	660	880		1320
	Rated thermal consumption(MJ/kW·h)	≤11.0
	Rotate direction (From flywheel)	Clockwise
	Start mode	Compressed air /motor start				Compressed air start
	Exhaust temperature (ºC)	≤600				≤650
	Oil consumption(g/kW·h)	≤0.8				≤1.0
Generator set	Type	300GFM	400GFM	500GFM	600GFM	800GFM		1200GFM
	Rated power(kW)	300	400	500	600	800		1200
	Frequency(HZ)	50
	Voltage(V)	400/6300/10500
	Current(A)	541/34/21	722/46/28	902/57/34	1083/69/41	1443/92/55		2165/137/82
	Power factor (COSΦ)	0.8 (Lagging)
	Phase and connecting	3phases 4wires /3phases 3wires
	Dimension (L×W×H) (mm)	5800×1600×2900		6400×1600×2900		8500×1900×3500	8500×1900×3700
	Weight(kg)	18000		22000		41000	42000

Customer Benefits for Syngas Engines

• Cylinders Structure in Line & Upright & Concise Layout, which means simple, easy and low cost in operation & maintenance. Engine-Overhaul can be handled at user's site.

• Large cylinder (300mm), long stroke, low speed and big displacement 215L and 242L, which means big reserve power capacity and constant power output.

• Low engine speed at 500 or 600rpm, which means high reliability for continuous operation, sufficient combustion, low exhaust gas temperature and high heat efficiency.

• Naturally aspirated (no turbocharger and Intercooler), which means low failure rate and minimum downtime (TAR in syngas always block and damage turbocharger and intercooler).

• Internal mixing system (for high hydrogen gas over 15%), gas and air intake separately, then mixed in combustion room, which means no risk of backfire and cylinder knocking.

• Strong treatment and resistance ability against TAR, long term trouble free operation. TAR always raises problems of pipeline-blocking, cylinder-pollution and spark plug-jamming etc.

• Compressed Air Starting System, smooth starting, high success rate and easy for maintenance.

• Open Cooling System, adopting plate-type heat exchanger, high efficiency and easy for scale-removal.

• Dismountable intake-valve-box, which means can clean TAR easily and conveniently (no need disassembling of cylinder head).

• Low-speed engine makes the noise lower. The maximum noise ≤100dB. Through silencer, the noise will be ≤70dB.

• Low speed means low components wearing, namely lower cost in spare parts replacement and long life span.

• Long Overhaul Time of 60,000 hours and lifecycle of 20-25 years, which ensure sustainable financial rewards of power plant.

Applicable Gas Fuels
• Biomass from MSW, Woodchips, Sawdust, Straw, Rice husks, Nut-shells, and Chicken manure etc.
• Industrial tail gas & refinery gas, such as coal gas, coking gas, semi-coke gas, coke oven gas, oilshell tail gas, carbide tail gas, ferrochromium tail gas, yellow phosphorus tail gas, producer gas and paralysis gas etc.
6MW Woodchip Biomass Power Plant in Croatia
Waste to Energy project, 13x500kW syngas engines running in parallel, synchronized with utility. By using feedstocks of woodchips & rice husks, through biomass gasifier to produce combustible gas fuel, for cogeneration of electricity (for exporting energy) & hot steam (for drying feestocks) & byproducts of biochars, forming a comprehensive energy utilization system.
Applications
Why Zichai Gas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.
Project References
Our customers
Packing&Shipping
FAQ
1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement.

---
