Single Row 30W/50W/100W/150W/200W/250W Osram LED Light Bar for Offroad 4X4 Truck Jeep Auto Car Tractor

Product Description

Product Description

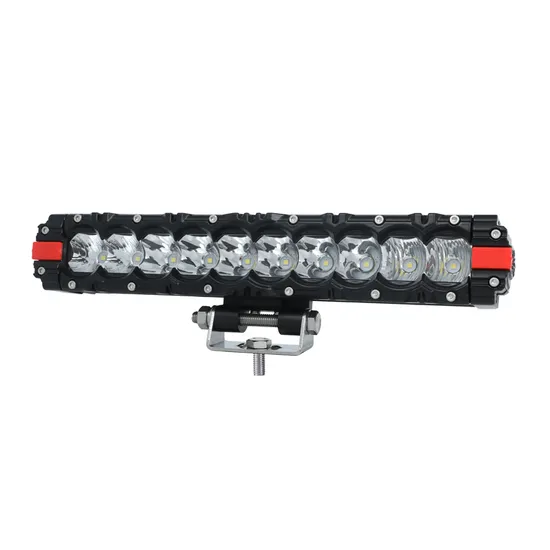

Our GTBS08 series single row LED light bar, with a slim profile of just 63mm total height, can be fit in any location maintaining the original look of the vehicle.
Equipped with color changeable decorative end cap, concave-convex design of the covering strip, particular die-casting side cover make the overall appearance more unique and wild.
Adopt 5W Osram OSLON P7, excellent beam pattern, 304# Stainless steel side and bottom mounting brackets both which provide user a powerful lighting experience.
Detailed Photos

Different Sizes are Available

Model	Size	Watt	AMP Draw	Leds	Theoretical Lumen	Cable Length	Net Weight	Package Standard
GT-BS08-6L	7.68"	30W	1.25A@12V, 0.625A@24V	6Pcs*5W Osram	2100Lm	400mm	0.71Kg/Pcs	20Pcs/Carton
GT-BS08-10L	11.7"	50W	2.08A@12V,1.04A@24V	10Pcs*5W Osram	3500Lm	400mm	1.0Kg/Pcs	10Pcs/Carton
GT-BS08-20L	21.6"	100W	4.16A@12V, 2.08A@24V	20Pcs*5W Osram	7000Lm	600mm	1.62Kg/Pcs	6Pcs/Carton
GT-BS08-30L	31.7"	150W	6.25A@12V, 3.125A@24V	30Pcs*5W Osram	10500Lm	800mm	2.2Kg/Pcs	6Pcs/Carton
GT-BS08-40L	41.7"	200W	8.33A@12V, 4.165A@24V	40Pcs*5W Osram	14000Lm	800mm	3.1Kg/Pcs	6Pcs/Carton
GT-BS08-50L	51.9"	250W	10.41A@12V, 5.20A@24V	50Pcs*5W Osram	17500Lm	800mm	5.37Kg/Pcs	4Pcs/Carton

Dimension Drawing

MODEL	A(Inch)	B(Inch)	C(Inch)	D(Inch)	E(Inch)	F(Inch)	Led's(pcs)	Theoretical Power(Watt)	Theoretical lumen(Lm)
GT-BS08-6L	1.97	2.47	2.5	7.7	9	1.52	6	30	2100
GT-BS08-10L	1.97	2.47	2.5	11.7	13	1.52	10	50	3500
GT-BS08-20L	1.97	2.47	2.5	21.7	23	1.52	20	100	7000
GT-BS08-30L	1.97	2.47	2.5	31.7	33.03	1.52	30	150	10500
GT-BS08-40L	1.97	2.47	2.5	41.7	43.02	1.52	40	200	14000
GT-BS08-50L	1.97	2.47	2.5	51.7	53.04	1.52	50	250	17500

Beam Pattern
Applications
1. Off road vehicles: 4×4, ATVs, SUV, UTV, truck, trailer, Fork lift, heavy-duty trucks, trains, boat, and tanks.
2. Specialized vehicles: Fire engine, police cars, rescue vehicle, communication vehicle,military command vehicle etc.
3. Other usage: Beach lights, Mining lighting, Caravan lighting, Construction lighting, Garden &exterior lighting, Agricultural machinery lamps, Hunting, camping & outdoor lighting.
Company Profile
Established: 2011
Business model: Manufacturer
Professional Staff: 100+
5 years experience Staff: 65%
Factory Area: 5000 square meters
Production line: 15
OEM projects: 100 cases
Key Products: Led light bar, led work light, led auto lamp, led headlights, led fog lamp mounting brackets, wiring harness, led agricultural lights, beacon, led warning light.
Certification: ISO9001, CE, RoHs, E-mark, CISPR, DOT, SAE, UL, IP67, IP68, IP69K, LVC, WEEE
Production Capacity: Led work light 12,000 SETS/Week, Led light bar 3500 SETS/Week.
Main Markets: Australia /Western Europe / North America/ South America/Southeast Asia/ Africa/ Mid East/ Eastern Asia Business model: Manufacturer (Specialized in designing and producing premium Led light bar, led work light, mounting clamps/brackets and wiring harness/kits.)Main Markets: Australia /Western Europe / North America/ South America/Southeast Asia/ Africa/ Mid East/ Eastern Asia
Why choose Ginto?
1.Have a group of experienced optic, structure and graphic engineers;
2.Provide high resolution product pictures/videos, professional lux chart, product specific drawing etc
3.Waterproof Test, EMC Test, Drop Test, Aging TEST, Vibration Test, Salt spraying test etc.
4.CE, RoHS, ECE, E-mark(R10, R23, R112), IP67, IP68, UL, WEEE certification, or any other certification that will help increase customer's sales etc;
FAQ
1. What are your payment terms? T/T, Paypal, Western Union are all available. 2. What are your shipping terms? Small sample orders: By express courier (DHL, UPS, TNT, Fedex) Bulk orders: By air / By sea3. Do you offer free samples? Normally, we need to charge customer sample fee. If their subsequent orders can reach to a certain quantity, we will return them the sample fee.4. What customized services do you offer? We can supply customized sticker, usage manual, color box, customized cartons, logo laser/pad printing etc...5. Delivery Time? 3-5 working days for sample, 15-30days for bulk order. 6. What is your warranty? Defective rate of Ginto led light is less than 0.5%, please don't worry in case you encounter product problem. Contact us with clear photos or video, we will send new lights in your next order after evaluation.
7.What to prepare before placing an order? Please send us the model name, beam pattern and quantity, detailed shipping address and post code, preferred shipping way and payment way.
