Delem Da-53t 4+1 Axis Sheet Metal CNC Press Brake Bending Machine

Product Description

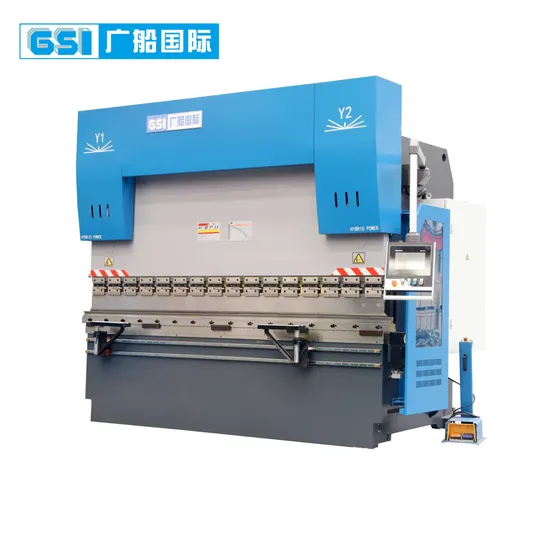

Product DescriptionWE100/3200 Hybrid CNC Press Brake
Product Features
Critical Components
Detailed Picture
Introduction for CNC System-- Delem DA-53T (standard)
Cybtouch 8PS from Switzerland (Optional)
-Standard control of 4+1 axes.
-8" color LCD display, multiple languages including Chinese.
-Intuitive operation, bright display color, highly integrated functions, full touch human-machine interface.
-The page is concise, the display is clear, and the large button icons are easy to operate.
-Fingers draw workpiece cross-section, easy manual control.
-The USB interface is convenient for transferring parameters and bending programs.
-Automatic calculation of bending angle, unfolding length, pressure and deflection compensation,large arc bending function.
Cybtouch 12PS from Switzerland (Optional)
-Standard control of 4+1 axes.
-12" color LCD display, multiple languages including Chinese.
-Intuitive operation, bright display color, highly integrated functions, full touch human-machine interface.
-The page is concise, the display is clear, and the large button icons are easy to operate.
-Fingers draw workpiece cross-section, easy manual control.
-The USB interface is convenient for transferring parameters and bending programs.
-Automatic calculation of bending angle, unfolding length, pressure and deflection compensation,large arc bending function.
GSI GT15 (Optional)
- 15'' high-definition true color touch screen, 1920 × 1080 pixels. - Quad core CPU, turn on in 5 seconds.
-Standard 4+1 axes, can be expanded up to 6+1 axes.
- 2D graphical programming.
- Switch self diagnosis.
- The back gauge retreat function.
- High speed bending function.
- Standard USB interface, multi workpiece storage function.
- Angle compensation function.
- Special functions: bridge function, large arc bending, one click backup andrecovery factory function.
- Wireless remote control.
Netherlands DELEM DA-66T (Optional)
-2D product programming, automatic calculation of bending process and collision detection function. The 3D all-round, multi-station mold shows the real-time bending operation feasibility of real machine tools.
-17" high-resolution TFT true color display, complete Windows application package, support instant shutdown.
-USB,peripheral interface.
-User program application in multi-task environment, angle detection sensor interface.
Main Technical Parameters of WE Series Hybrid CNC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Strok(mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm	Speed			Overall Dimension			Weight (kg)
										Approach (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	WE40/1500	400	1500	1160	320	160	410	5.5	500	180	10	150	230	1350	2500	4000
2	WE50/2000	500	2000	1500	320	160	410	5.5	500	180	10	150	2600	1380	2550	4500
3	WE63/2500	630	2500	2000	320	160	410	5.5	500	180	10	150	3100	1500	2600	5500
4	WE80/2500	800	2500	2000	400	200	470	7.5	500	180	10	140	3100	1650	2650	6000
5	WE100/2500	1000	2500	2000	400	250	525	7.5	500	160	10	130	3100	1650	2650	7200
6	WE100/3200	1000	3200	2700	400	250	525	7.5	500	160	10	130	3800	1650	2750	8000
7	WE100/4000	1000	4000	3500	400	250	525	7.5	500	160	10	130	4600	1650	2800	9000
8	WE125/2500	1250	2500	2000	400	250	525	11	500	160	10	130	3100	1700	2700	8000
9	WE125/3200	1250	3200	2700	400	250	525	11	500	160	10	130	3800	1700	2750	9000
10	WE125/4000	1250	4000	3500	400	250	525	11	500	160	10	130	4600	1700	2800	10000
11	WE125/5000	1250	5000	4100	400	250	525	11	500	160	10	130	5600	1700	2900	12000
12	WE160/2500	1600	2500	2000	400	250	525	15	500	160	10	130	3100	1800	2750	8500
13	WE160/3200	1600	3200	2700	400	250	525	15	500	160	10	130	3800	1800	2800	9500
14	WE160/4000	1600	4000	3500	400	250	525	15	500	160	10	130	4600	1800	2850	11500
15	WE160/5000	1600	5000	4100	400	250	525	15	500	160	10	130	5600	1800	3000	13000
16	WE160/6000	1600	6000	5100	400	250	525	15	500	160	10	130	6600	1800	3200	15500
17	WE200/3200	2000	3200	2700	400	250	550	18.5	500	160	10	120	3800	1800	2850	12000
18	WE200/4000	2000	4000	3300	400	250	550	18.5	500	160	10	120	A60	1800	2900	14000
19	WE200/5000	2000	5000	4100	400	250	550	18.5	500	160	10	120	5600	1800	3100	15500
20	WE200/6000	2000	6000	5100	400	250	550	18.5	500	160	10	120	6600	1800	3300	18000
21	WE250/3200	2500	3200	2700	400	250	550	18.5	500	150	8	110	3800	1900	2950	14500
22	WE250/4000	2500	4000	3300	400	250	550	18.5	500	150	8	110	4600	1900	3100	16000
23	WE250/5000	2500	5000	4100	400	250	550	18.5	500	150	8	110	5600	1900	3200	17500
24	WE250/6000	2500	6000	5100	400	250	550	18.5	500	150	8	110	6600	1900	3350	20000
25	WE320/3200	3200	3200	2700	400	300	600	22	500	150	8	110	3800	2100	3200	17500
26	WE320/4000	3200	4000	3300	400	300	600	22	500	150	8	110	4600	2100	3300	20000
27	WE320/5000	3200	5000	4100	400	300	600	22	500	150	8	110	5600	2100	3600	24500
28	WE320/6000	3200	6000	5100	400	300	600	22	500	150	8	110	6600	2100	3850	29000
29	WE400/3200	4000	3200	270	400	300	600	30	500	150	8	110	3800	2500	3600	23000
30	WE400/4000	4000	4000	3200	400	300	600	30	500	150	8	110	4600	2500	3850	28000
31	WE400/5000	4000	5000	4000	400	300	600	30	500	150	8	110	5600	2500	4300	32000
32	WE400/6000	4000	6000	5000	400	300	600	30	500	150	8	110	6600	2500	5000	38000
33	WE500/4000	5000	4000	3200	500	300	600	37	500	130	8	100	4600	2600	4200	32000
34	WE500/5000	5000	5000	4000	500	300	600	37	500	130	8	100	5600	2600	4800	40000
35	WE500/6000	5000	6000	5000	500	300	600	37	500	130	8	100	6600	2600	5500	50000

View more products, pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 30 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment.
4. Q: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5. Q: Can you provide customized machine and tool?
A: Yes,we can design and manufacture according to your specific requirements.
6. Q: How do you guarantee your quality?
A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.
7. Q: Where is your factory located? How can I visit there?
A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
