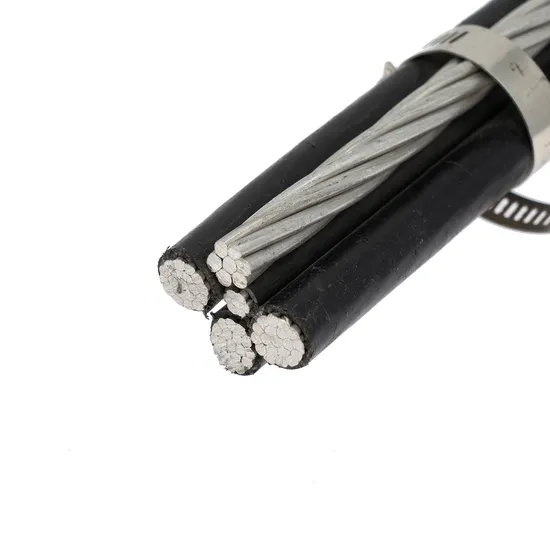

Quadruplex Service Drop AAAC 6201 Alloy Neutral Conductor Shetland Triplex Aluminum Underground Wire

Product Description

Aire Bundled Conductor ABC Cable
Product Details:
Insulation Material XLPE
Application Overhead
Jacket NON SHEATH
Conductor Material Aluminum
Type Low Voltage
Place of Origin Henan China
Brand Name YIFANG
Model Number DUPLEX, TRIPLEX, QUADRUPLEX
Payment & Shipping Terms:
Payment Terms: L/C, T/T
1. Application of Aerial Bundle Cable:
Aerial Bundle Cable are used for electric power transmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2. Type of Aerial Bundle Cable:
Aerial Bundle Cable covers mainly three types:
Two core(Duplex Service Drop)
Three core(Triplex Service Drop)
Four core(Quadruplex Service Drop)
The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.
3. Construction of Aerial Bundle Cable:
Rated voltage 0.6/1kv
Phase conductor: Aluminium conductor
Insulation: PVC or PEe or XLPE
Neutral Bare Conductor: AAC, ACSR, AAAC.

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
