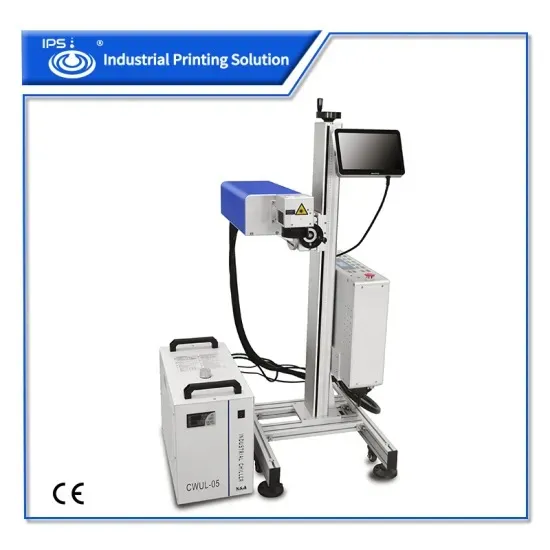

3W UV Laser Engraving Marking Machine with Water Cooling for Plastic Bag Pipe and Wipe Coding

Product Description

3w uv laser engraving marking machine with water-cooling 3w for plastic bag pipe and wipe coding

Support customized staring screen and logo, multiple language
Small and light, can carry easily, can save freight greatly.
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.It can be in the workpiece according to user requirements, images, text, numbers, lines, and so on. After the laser energy is amplified, under the control of computer and laser marking control card, images, words, numbers, lines and stripes can be marked on the workpiece according to the user's requirements.

Applications
The materials that can be printed by UV laser marking machine mainly include the following: Metal materials: such as stainless steel, aluminium alloy, copper and Plastic,Glass materials,Ceramic materials,Wooden materials,Paper materials,
In addition, UV laser marking machine can also be printed on some special materials, such as leather, fabric, stone and so on.
UV laser marking machine is widely used in many industries, including but not limited to the following industries:
Electronic manufacturing industry: used for marking, lettering, two-dimensional code on electronic parts, mobile phone cases, circuit boards, etc.
Packaging industry: used for marking, anti-counterfeiting code, production date, etc. for food packaging boxes, drug packaging boxes, beverage bottles, etc.
Automobile manufacturing industry: used for marking, traceability code, serial number, etc. of auto parts, auto glass, engine, etc.
Pharmaceutical industry: used for marking, batch number, barcode, etc. of pharmaceutical packaging, medical equipment, medical glass containers, etc.
Beverage and food industry: for marking, production date, shelf life, etc. of beverage bottles, bags, food cans, etc.
Jewellery and accessories industry: used for jewellery, gold and silver jewellery marking, logo, serial number and so on.
In short, UV laser marking machine is widely used in electronic manufacturing, packaging, automotive manufacturing, medicine, food, jewellery and accessories industries. Due to its high precision, high efficiency and durability, it becomes one of the important equipments in industrial production and processing.
SPECIFICATIONS OF IPS-LUV5W F

MODEL	IPS-LUV3 F ( 3W Fly UV Laser Marking Machine)
Laser power	3W
Laser Gun Brand	JPT
Laser Wavelength	355nm
Focus system	Two Red Light with accurate position
Scanning System	Digital Scanning Galvanometer with high seep motor
Indication System	Inner Red Outline Indication
Cooling System	External Water Cooling
Marking Size	75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth	0.01 MM
Min Font Height	0.01 MM
Repetition Accuracy	+-0.002 mm
Pulse Width	<20 ns @30KHZ
Pulse Repetition Rate	10-100KHZ
Optical quality	<1.2
Laser crystal working time	Around 20000 hours
Overall Power	Around 2000 watt
Power Supply	220V/50-60HZ/5A/1P
Flying System	10.4 inch professional fly marking system based on Android
Weight	87 KG
File Format Support	Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
Language support	English,Russian, Thailand, Korea ,Arabic ,Portuguese ( Can develop all language)
