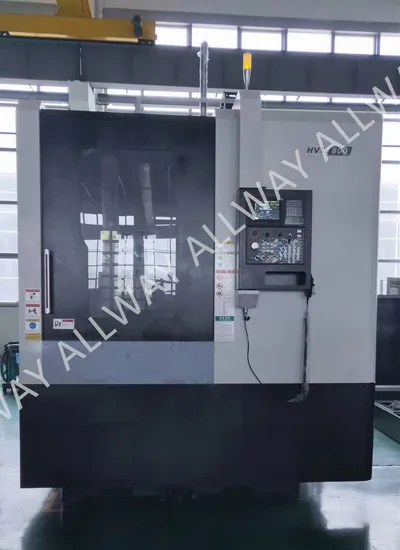

Hvt800 Turning Cutting CNC Vertical Lathe Machine

Product Description

Hvt800 Turning Cutting CNC Vertical Lathe Machine
Main Feature:
1. HVT series CNC vertical lathe is a lathe model in our company's leading product line. High stability and rigidity, easy to do automatic on-line machining.
2, HVT adopts high rigidity cast iron structure, body and main casting are made of high grade Meehan cast iron.
Wide base, high strength spindle, X, Y axis with heavy load linear slide is to ensure high machine strength.
3, guide rail: HVT series X, Z direction horizontal guide rail are not less than H precision strong linear guide rail.
4.The two axis ball screws of HVT series adopt PMIC3 ball screws.
Main technical parameters

ITEM	UNIT	HVT800
max. swing dia.	mm	950
Max. Swing over carriage	mm	700
Max. turning dia.	mm	800
Max. turning height	mm	700
Hydraulic chuck size (3 jaws)	mm	610(option:534 or 457)
Hydraulic station		built into the bed
table speed range	rpm	1500
Table speed steps		1 steps
Table torque	Nm	482
Spindle nose		A2-11
Max workpiece weight	kg	800
Turret type		Horizontal
Tool numbers		8(option:12)
Max tool change time	sec	3
Turning holder size	mm	32(25)
Boring holder dia.	Mm	50(40)
X-rapid feeding	m/min	20
Z-rapid feeding	m/min	20
X-travel	mm	420
Z-travel	mm	750
Cutting speed X/Z	mm/min	1-5000
Cutting speed X/Z	mm/rev	0-0.2
discreteness of the given displacements Х/Z	mm	0.001
Main motor power S1/S6	kw	18,5/22
X/Z motor	kw	3.0/3.0
X/Z guideways		55mm linear guideway
X/Z ball-screws	d/pitch	5010
Power supply requirement	kVA	60
Machine size	mm	2500X4400X3800
Necessary free space in workshop (including machine service area)	mm	3500*5500*4000
Machine weight	kg	11000
X/Z position accuracy	mm	0.012
X/Z repeatability accuracy	mm	0.008
Pressure air (if needed)	MPa	--
Pressure air consumption (if needed)	L/min	--
Cooling tank volume	L	200
A/C electric box		Yes
CNC Fanuc 0i-TF		Yes
X/Z servomotors FANUC		Yes
X/Z servo drivers FANUC		Yes
Spindle motor FANUC 18.5 or domestic 22	kw	Yes
Full cabinet protection		Yes
3-color signal lamp		Yes
Hand-gun for cooling liquid		Yes
Chip conveyor + chip tank		Yes
Automatic lubrication station		Yes

Vertical Turning Lathe STANDARD:
Optional:
Instances
Contact ALLWAY MACHINERY , get more professional information!

---
