Product Description
Product Description

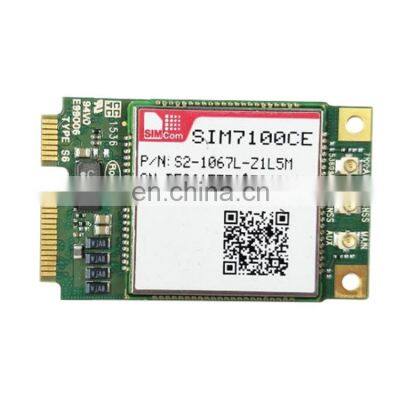

Product Description• SIMCom presents an ultra compact and reliable wireless module SIM7100CE which is based on Qualcomm MDM9615 multiplemode LTE platform. • SIM7100CE is a complete multi-band TDD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core: Cortex™ A5(550MHz), three QDSP6 cores (Up to500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.General features• Three-Band FDD-LTE B1/B3/B8• Four-Band TDD-LTE B38/B39/B40/B41• Dual-Band UMTS/HSDPA/HSPA+ B1/B8• Dual-and TD-SCDMA B34/B39• Single-Band CDMA 1X/EVDO BC0• Dual-Band GSM/GPRS/EDGE 900/1800 MHz• Control Via AT Commands• Supply voltage range: 3.4V~ 4.2V• Operation temperature: -40℃ to +85℃• Dimension: 30 X 30X 2.9 mm• Weight: 5.8g• GNSS: gpsOne Gen 8B;standalone;assisted,XTRA; Specifications for Data transfer•LTE- Uplink up to 50Mbps,- Downlink up to 100Mbps• TD-HSDPA/HSUPA- Uplink up to 2.2 Mbps,- Downlink up to 2.8 Mbps• TD-SCDMA- Uplink up to 128Kbps,- Downlink up to 384Kbps• HSPA+- Uplink up to 5.76 Mbps,- Downlink up to 42 Mbps• UMTS- Uplink/Downlink up to 384Kbps• CDMA 2000 EVDO- Max. 3.1Mbps(DL), Max. 1.8Mbps(UL)• EDGE Class:- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)• GPRS- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)• CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6Kbps- WCDMA 64kbps CSD for Video callOther features• USB Driver for Microsoft Windows 2000/XP/Vista/7/8• USB Driver for Windows CE/Mobile• USB Driver for Linux /Android• RIL supporting for Android/Windows CE/Mobile• Automatic installation for windows• Linux API SDK• Firmware update via USB• TCP/IP/IPV4/V6 Multi-PDP,MT PDP• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS• DTMF• Gobi SDK to the Win7/Win8/Linux• MBIM to Win8• Source code of the PC manager of the device for referenceInterfaces•USB2.0• UART• SIM card• SPI• I2C• Keypad(5*5)• Constant current sink• GPIO• ADC• PCM• SDIOCertifications• Rohs• REACH• CCC• TA• CTAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
