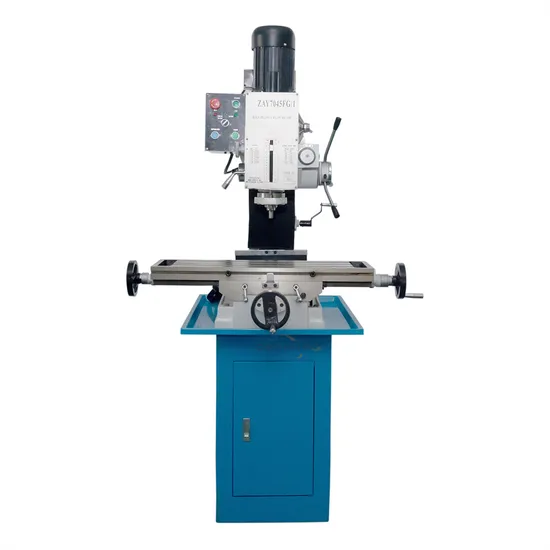

Multifunction Milling and Drilling Machine Zay7032fg-1 Zay7040fg-1 Zay7045fg-1 Metal Vertical Drilling and Milling Machine

Product Description

Multifunction Milling and Drilling Machine ZAY7032FG-1 ZAY7040FG-1 ZAY7045FG-1 Metal Vertical Drilling and Milling Machine
Product Description
Characteristics:
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
And cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Main technical Specifications:

ITEM	ZAY7032FG/1	ZAY7040FG/1	ZAY7045FG/1
Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	450mm	450mm	450mm
Min distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Auto-feeding step of spindle	6	6	6
Auto-feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
