Long Time Using Disk Harrow Real Price Farm Rakes with Shipping Cost Adjustable Rake Spacing

Product Description

Product Description

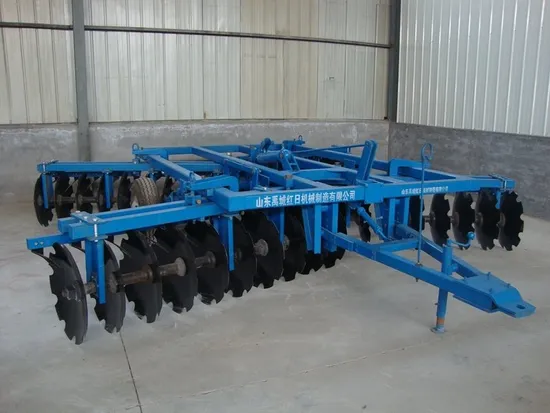

Disc Harrow1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved.
Product Parameters

model	1BQDX-1.3	1BQDX-1.6	1BQDX- 2.2	1BQDX-2.6	1BQDX-3.0	1BQDX-3.4
Tillage	1400	1800	2200	2600	3000	3400
Deep cultivation	100-140
Rake blade diameter	460mm/ 18inch
Thickness of rake blade	3
Number of ra ke blades	16	20	twenty four	28	32	36
weight	340	390	440	490	495	530
Supporting power	30-35	35-45	45-55	60-75	75-80	80-95
Mounting form	Three - pointed mounted with tractor

Main Technical Features
Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.
Detailed Photos
Packaging & Shipping

---
