5V3A 6A 10A 15A 20A 30A Battery tester
Product Description

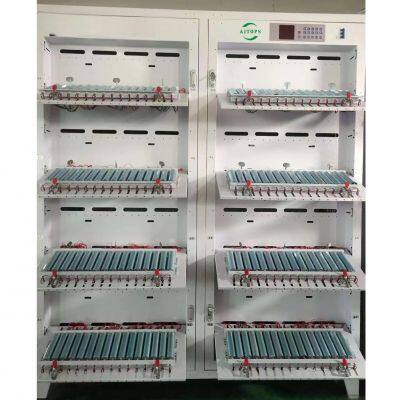

5V20a 512 Channel Battery Forming and Grading Tester Analyzer/Analyser 18650 21700 32650 32140 33140 33135 Cell Capacity Testing Machine Test Equipment
AITOP 512CH 18650/26650/32650 Battery Capacity Tester for 5V20a 512 Channel Li-Ion Battery Charging Discharging Testing Tester (256 channels 5v20a Battery Capacity Tester )
Performance characteristics
Features:
1. Each device can carry out constant current and constant voltage charging and constant current discharge test on 512 batteries meeting the voltage range.
2. Adopt the constant current constant voltage power supply of the invention patent, constant current to constant voltage switching without impact, especially suitable for the charging requirements of lithium-ion battery.
3. The AVR single-chip computer is used as the control center of the equipment, and the peripheral sampling circuit is used. The equipment can be controlled by the superior computer. When the computer is connected, the complete charge discharge curve of all channels can be saved, or it can be separated from the superior computer. Through the operation of the control panel, the constant current and voltage charging, constant current discharge test, time sorting and other work can be completed.
4. Each battery has an independent constant current and voltage source, and the self-made circuit does not affect each other.
5. Detect the voltage of each battery in real time. When charging, charge at constant current first. When the battery voltage reaches the set value, it will smoothly switch to constant voltage charging. When the set time or current termination conditions are met, the charging will end. During constant current discharge, when the battery voltage is lower than the set value, the discharge is ended and the corresponding battery indicator light is on.
6. It has the function of power-off protection, and can continue to operate after receiving the original workflow
7. The power tube is 50N06, which is suitable for batteries requiring low discharge voltage, such as lithium iron phosphate battery
8. The upper computer can set 32 working step parameters and 256 cycles, and each upper computer can be connected with 1-10 sets of single-chip system (less than 10 sets are recommended).
Supporting Software Functions:
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Main Technical Parameters
Number of device channels
| 512 (Single CPU control)
|
Constant current range
| 0.05 ~ 20A, resolution 1mA
|
Accuracy of current measurement
| ±0.1%FS
|
Sampling current accuracy
| ±0.1%FS
|
Voltage measurement range
| 0 ~ 5V, resolution 1mV
|
Accuracy of voltage measurement
| ±0.1%FS
|
Charging and discharging voltage range
| Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V
|
Constant voltage setting range
| 3 ~4.5V
|
Accuracy of constant pressure setting
| ±0.1%FS
|
Time range
| 0-30000 min / step, accuracy: ± 0.1%
|
Heat dissipation mode
| Cold wind
|
Battery Clamp
| Cylinder clamp, polymer clamp
|
Work loop source
| Temperature: 0 ~ 40 ℃,
relative temperature ≤ 85%
(no water condensation)
|
External size
| 1600mm (W) × 550mm (L) × 1840mm (H)
|
Working power supply
| Three phase four wire system,
AC380V ± 150%, 50Hz
|
Power consumption at full load
| ≤51.2KW
|
Minimum configuration of computer system:
| 1. Dual core CPU or above,
2. 4G or above memory,
3. 500GB or above hard disk space,
4. EGA / VGA color display, one CD-ROM, one mouse
5. Windows XP or above operating system, one 6. RS232 serial communication port available.
7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.
|
General equipment configuration and standards
| 1. Appearance color of equipment,
Case: silver white,
Cabinet: silver white.
2. Attach the Chinese operation manual and software U disk.
|
MN-EF512-3K Battery Capacity Tester for 18.21.26.32700 Cells
Keywords: Battery Tester, Capacity Testing, 18.21.26.32700 Cells
MN-EF512-6K Battery Capacity Tester for 18.21.26.32700 Cells
Keywords: Battery Tester, Capacity Testing, 18.21.26.32700 Cells
MN-EF256-30KY Battery Capacity Tester for 32135.34.38.40.46 Cells
Keywords: Battery Tester, Capacity Testing, 32135.34.38.40.46 Cells
MN-EF256-10KY Battery Capacity Tester for 32135.34.38.40.46 Cells
Keywords: Battery Tester, Capacity Testing, 32135.34.38.40.46 Cells
MN-EF512-3KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
MN-EF512-6KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
MN-EF512-10KY Battery Capacity Tester for 18.21.26.32700.33140 Cells
Keywords: Battery Tester, Capacity Testing, 18.21.26.32700.33140 Cells
MN-EF32-120K Battery Capacity Tester for Square Alkaline Batteries
Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
MN-EF128-30D Battery Capacity Tester for Square Alkaline Batteries
Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
MN-EF64-60D Battery Capacity Tester for Square Alkaline Batteries
Keywords: Battery Tester, Capacity Testing, Square Alkaline Batteries
MN-EF512-3K Battery Capacity Tester for 512ch.5v3a Cells
Keywords: Battery Tester, Capacity Testing, 512ch.5v3a Cells
MN-EF512-6K Battery Capacity Tester for 512ch.5v6a Cells
Keywords: Battery Tester, Capacity Testing, 512ch.5v6a Cells
We provide all kind of lithium battery pack assembly machines and solutions with good quality and services.
Our products including:
1.IR tester
2.Capacity tester for cylindrical &prismatic&polymer cells
3.BMS tester
4.Sorting machine for common use
5.Insulation paper sticker machine
6.Manual spot welding machine
7.Automatic spot welding machine
8.Battery pack integrated tester
9.Battery pack charging discharging aging machine
10.PVC shrinking machine
11. Nickel plate&PVC cutting machine
12.Laser welding machine
13.Wire bonding machine and etc.
All of our products are good price.
If you have any interesting,please feel free to contact with us
TOP Battery machine factory contact number
Shenzhen AITOP Intelligent Equipment Co., Ltd.
Email :sales(@) /leon(@)
Techinical Parameters:
| SPECIFICATION |
| Model | TOP-500 |
| Power Supply | AC 220V, 50Hz |
| Power | 200w |
| Efficiency | 4000 pcs/h |
| Cells applied | 18650 battery cells |
| Programming interface |
| LCD screen |
|
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981
/18098989643/+8618098919495
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981
/18098989643/+8618820281861/+8618098919495
Email:sales(@)
>>
