Stainless Steel Manifolds for Booster Set AISI 304 316

Product Description

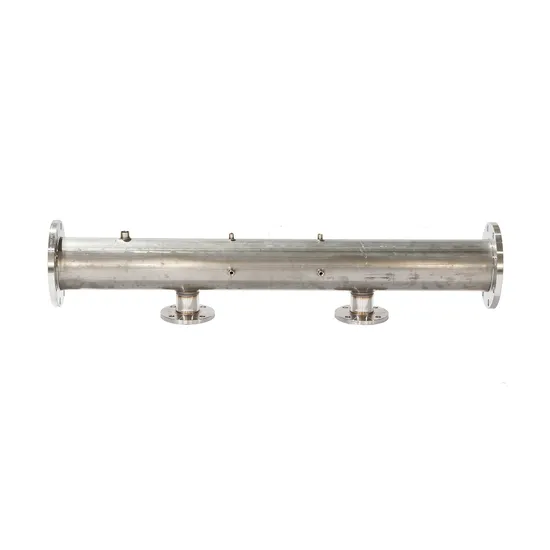

Stainless Steel Manifolds for Booster Set AISI 304 316
Applied Client Booster Units
Cooperative & Applied Client Booster Units
Product Description
MANIFOLD TECHNICAL FEATURES

Manufacturing process	Pipe cold buckling
Material	Stainless steel AISI 304, AISI 316 is available on request.
Welded joints	Made with TIG method
Surface treatment	Electroplishing
Threaded ends	From 1" to 4"
Flanged methods	From 4'' to 8"
Thread Type	NPT, NPTF, BSPT, BSPP and so on.
Flange Standard	ASME/ ANSI, API, DIN, GOST, BS, AS, JIS, JPI and so on.
Wall Thickness	1.5mm - 3.0mm
Nominal working pressure	Standard 16 bar, 25 bar, 32 bar
Maximum length	6000mm
Application	Pump Booster Set, Water Treatment, Floor Heating System and so on.
Packing	Wooden Case with Pallet (Plywood)

MANIFOLD ADVANTAGES:

Less MOQ limit	Flexibility according to your plan.
The shortest delivery time	One month for a container.
Sample support	Samples for your inspection to see the quality.
Production experience	20 yeas of Manifolds production experiences.
Sales experience	More than 15 years professional experience in the Water Pump industry.
Internal brand we cooperated	We supply to international brands.

>>We follow strictly the business ethic. Honest and trust are our core values to follow. Detailed Photos

Manifolds Collection Photos Customization Manifold

Manifold-Customization Different pump system needs different dimension manifolds.
Customized manifolds are requested.
Drawing with all specific data, manifolds can be made accordingly.
Special Manifolds
Standard Manifolds

Standard Manifolds

	L	DNM	DMP	A	B	C	D
1'' x 1''	610	1''	1''	360	40	125	16
1-1/4'' x 1''	610	1-1/4''	1''	360	40	125	16
1-1/4'' x 1-1/4''	610	1-1/4''	1-1/4''	360	45	125	18
1-1/2'' x 1-1/4''	610	1-1/2''	1-1/4''	360	45	125	18
1-1/2'' x 1-1/2''	610	1-1/2''	1-1/2''	360	45	125	20
2'' x 1-1/4''	610	2''	1-1/4''	360	45	125	18
2'' x 1-1/2''	610	2''	1-1/2''	360	45	125	20
2'' x 2''	610	2''	2''	360	55	125	25
2-1/2'' x 1-1/2''	650	2-1/2''	1-1/2''	380	45	135	20
2-1/2'' x 2''	650	2-1/2''	2''	380	55	135	25
2-1/2'' x 2-1/2''	650	2-1/2''	2-1/2''	380	55	135	25
3'' x2''	700	3''	2''	600	60	150	25
3'' x 2-1/2''	700	3''	2-1/2''	600	60	150	25
3'' x 3''	700	3''	3''	600	60	150	30

More Products

More Products
Equipment

Equipment Photos Testing
Testing photos
Package photos
Welcome to contact us!

---
