Used Tire Recycling Machine / Rubber Powder Making Machine

Product Description

Used Tire Recycling Machine / Rubber Powder Making Machine
Description:
· Slow Speed High,Torque Shredding Principle;
· Low Dust and Low Noise Operation as well as Low Maintenance Design;
· Shock absorbing shaft couplings between gearboxes and blade shafts reduce operational stresses;
· High Strength Cutters and Spacers manufactured from high quality heating-treated steels are suitable for shredding tough materials;
· Individual Cleaning Fingers mounted to the chamber sidewalls ensure quick discharge of shredded materials;
· Modular Chamber Design with split endplates and bearing housings enables quick access to key components;
· Advanced Adjustable Sealing System for the bearings;
· Stand Alone Electrical Control Panel with Siemens PLC Control System;we also can equip the PLC system with any other kind of world well-known brand as your appointed;
· Tested, Approved and Certified to the applicable CE safety standards and we also can achieve other standards as your request;
Car tyre / truck tyre recycling

Rubber powder processing equipments: This production line is used to make the waste tire or rubber into rubber powder or rubber crumb. It can make both radial tire and bias tire.
Technical parameters:
As follow of sheet.

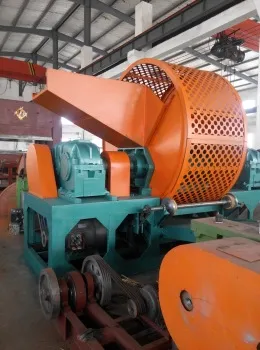

Pictures of shredder:

Model	TS-900	TS-1200
Production capacity	0.8-2ton/h	1.5-3ton/h
Size of feeding	≤900mm whole tyre	≤1200mm whole tyre
Specification of the slice	≤50*50mm	≤ 5 0* 5 0mm
Motor power	74 kw ( 37*2 )	1 5 0 kw ( 75*2 )
Cutter rotate speed	16r/min	31r/min
Screener rotate speed	6r/min	8r/min
Dimension	2.8*2.1*2.4m	5.2*2.8*3.5m
Weight	10 .2T	1 9 .8T

---
