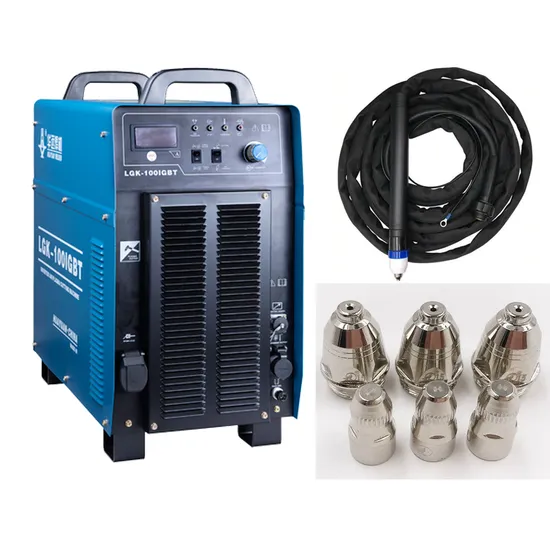

New Design Lgk-63 120 160 200IGBT Huayuan Plasma Power Source for CNC Plasma Cutter Portable Plasma Power Source

Product Description

Product Description
Features of 120A Inverter Hand CNC Plasma Cutter Machine:
High load persistence, suitable for heavy industry.
With wide grid voltage adaptability.
Cutting current slow rising technology, reduce the consumption of cutting gun accessories.
Good arc stiffness, clean cut.
Scientific dustproof design, high reliability of the whole machine.
Compact structure, small size and light weight.
Cutting current stepless adjustable, suitable for different thickness of the workpiece.
Qigong test, easy to adjust the air pressure.
With undervoltage, overheat automatic protection function.

Detailed Photos
Air gouging, cutting, dual - use, it can be freely to switch working mode according to application.
Designed for CNC plasma cutting machines with unloading voltage up to 380V.
The output terminal is equipped with a self-reset protective cap to ensure operation safety.
P80 plasma cutting torch

Product Parameters

Item	Model
		LGK-100IGBT	LGK-120IGBT	LGK-160IGBT	LGK-200IGBT
Input source (V/Hz)	3-380±15% 50/60
Rated input capacity (KVA)	9.5	17.8	22.4	32.2	46.7
Rated input current (A)	14.5	27	34	49	71
Rated output current (A)	63	100	120	160	200
Rated output voltage (v)	106	120	128	144	160
Rated unloading voltage (v)	300	300	300	315	315
Rated loading cycle	60%(40ºC)	100%(40ºC)
Range of output current (A	30-63	30-100	30-120	30-160	30-200
Ratio of arc pressure output signal	1:1/1:20/1:50/1:100
Qualified cutting capacity (carbon steel) (mm)	0.3-12	0.3-22	0.3-25	0.3-35	0.3-45
Cutting capacity (carbon steel) (mm)	25	40	45	55	65
Plasma air	Air compressor
Air pressure (mpa)	0.3-0.5	0.4-0.6
Cooling method of torch	Air cooling			Air cooling/Water cooling
Cooling method of source	Air cooling			Water cooling
Insulation grade	Grade F
Shell protect grade	IP21S
Dimension (mm)	585*280*485	675*320*605		800*380*650	800*380*810
Net weight (kg)	26	45	46	65Item	82

Packaging & Shipping
Working Site
Application of 120A Inverter Hand CNC Plasma Cutter Machine:The plasma power supply is mainly used for cutting metal materials such as carbon steel, stainless steel, and aluminum. It is widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.
Gantry CNC cutting machine is a kind of cutting and blanking equipment with extremely wide application. The professional mechatronics equipment combined with computer and software can cut any shape of plate or tube workpiece, improve cutting quality and efficiency, and increase material utilization. The stability of the cutting rate and cutting quality reduces the labor intensity of workers.
CNC Plasma cutting: It is a processing method that uses the heat of a high-temperature plasma arc to partially melt or evaporate the metal at the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal to form an incision.
Related Products

FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What's the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.

---
