Product Description
Product Description

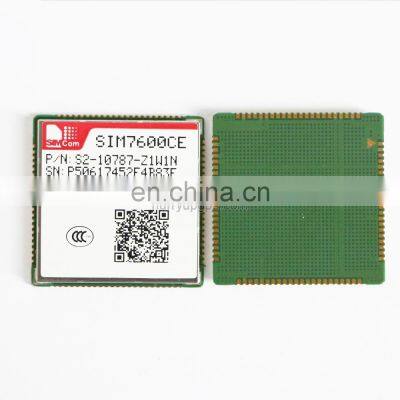

Description• The SIM7600CE is Multi-Band LTE-TDD/LTE-FDD/HSPA+ and GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT1 up to 10Mbps for downlink data transfer.• It has strong extension capability with rich interfaces including UART, USB2.0, I2C, GPIO etc.With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ DNS, the module provides much flexibility and ease of integration for customer's application.General features • TDD-LTE B38/B40/B41• FDD-LTE B1/B3/B5/B7/B8/B20• WCDMA/HSDPA/HSPA+ B1/B5/B8• GSM/GPRS/EDGE 900/1800 MHz• Control Via AT Commands• Supply voltage range: 3.4V~ 4.2V• Operation temperature: -40℃ to +85℃• Dimension: 30*30*2.9 mm• Weight: 5.5g• GNSS gpsOne Gen 8B;standalone;assisted,XTRASpecifications for Data transfer• LTE CAT1- Uplink up to 5Mbps- Downlink up to 10Mbps• HSPA+- Uplink up to 5.76 Mbps- Downlink up to 42 Mbps• UMTS- Uplink/Downlink up to 384Kbps• EDGE Class- Uplink/Downlink up to 236.8Kbps• GPRS- Uplink/Downlink up to 85.6KbpsOther features• USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10• USB Driver for Windows CE• USB Driver for Linux /Android• RIL supporting for Android/Windows CE• Automatic installation for windows• Firmware update via USB• TCP/IP/IPV4/V6 Multi-PDP,MT PDP• FTP/FTPS/HTTP/HTTPS/DNS• DTMF• MBIM to Win8• Source code of the PC manager of the device for reference Interfaces• USB2.0• UART• SIM card• I2C• Constant current sink• GPIO• ADC• PCM• SDIOCertifications(Plan)• ROHS• REACH• CEWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
