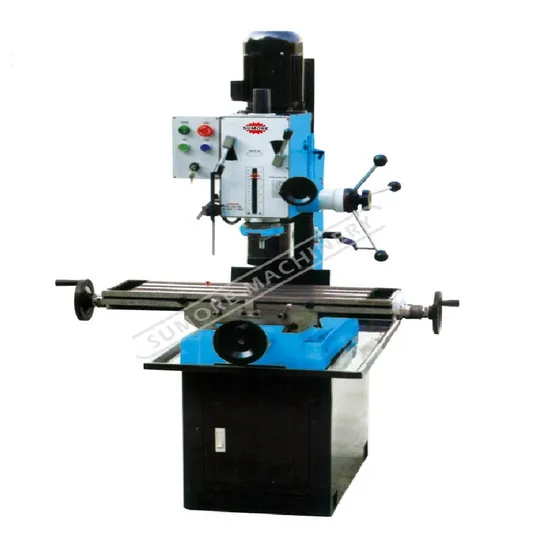

The Most Popular Low Cost Mini Manual Milling and Drilling Machine Zay7025fg Zay7032fg Zay7040fg Zay7045fg

Product Description

Product Description
mini manual vertical milling and drilling machine price sp2208-II/SP2208-III/SP2208-IV The Most Popular Low Cost Mini Manual Milling and Drilling Machine ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:40/45mm
2.End mill capacity:32mm
3.Face milling capacity:80mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 80-1800rpm
7.Working tabel:800*240/1000*240mm
7.Power:1100W/1500W
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters

Model SP2208-II SP2208-III SP2207-IIV Max boring diameter 50 mm 60 mm 60mm Drilling Capacity 32 mm 40 mm 40mm/45mm End Milling Capacity 20 mm 32 mm 32mm Face Milling Capacity 63 mm 80 mm 80mm Longitudinal Axis Travel (X) 500 mm 500 mm 500 mm Cross Axis Travel (Y) 175 mm 175 mm 175 mm Spindle Stroke 130 mm 130 mm 130 mm Effective Table Size 800 / 900 x 240 mm 800 / 900 x 240 mm 800 / 900 x 240 mm Spindle Taper MT3 / R8 MT4 / R8 MT4 / R8 Spindle Speed Range (50Hz) 80-1,250 rpm 80-1,250 rpm 80-1,250 rpm Spindle Speed Range (60Hz) 95-1,500 rpm 95-1,500 rpm 95-1,500 rpm Auto-feeding steps of spindle 6 6 6 Auto-feeding amounts of spindle 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r Automaticlly lifting of spindle (customizable) 240mm/min 240mm/min 240mm/min Power feed attachment for table (customizable) Stepless Stepless Stepless Distance Between Spindle to Table 450 mm 450 mm 450 mm T-slot Amount 3 3 3 Vertical Head Tilt Angle(Left / Right) 90° / 90° 90° / 90° 90° / 90° Motor Power 750 w 1,100 w 1,100 w Voltage and Frequency Customrized Customrized Customrized Net Weight 320 kg 320 kg 323 kg/373 Packing Size (LxWxH) 770 x 880 x 1,160 mm 770 x 880 x 1,160 mm 770 x 880 x 1,160 mm Gross Weight 370 kg 370 kg 370 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
