Hg-B30t Four Column Hydraulic Mask Fabric Cutting Machine

Product Description

HG-B30T Four Column Hydraulic Mask Fabric Cutting Machine
Used for die cutting shoes,suitcases,bags,cases,seat covers,facial mask,soft toys,cleaning sponges,artifical flower,EPE,EVA,blister and abrasive tools. 1.Cutting Video: hydraulic cutting machine for multi-layer materials cutting video:
https://hgcutting.en.made-in-china.com

hydraulic cutting machine for foam materials cutting video:
https://hgcutting.en.made-in-china.comZheQwfuMG5mTG

hydraulic cutting machine for plywood materials cutting video:
https://hgcutting.en.made-in-china.com

More cutting machine video on our youtube page:
https://hgcutting.en.made-in-china.com
2.Features and Advantages 1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position. 2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting. 3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials. 4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate. 5.Central automatic lubrication systems can ensure precision and durability of the machine. 6.More economical and 2 or 3 times improving producting capacity. 7.Suitable for single-layer or multi-layer sheet or roll materials. 3.Product Specification

Model	Cutting Force	Dimension/(mm)	Cutting Area	Moter	Stroke	Net Weight
HG-A30T/63''	30 Tons	2330*1320*1260	610*1600mm	2.2kw	50-160mm	1900kg
HG-B30T/48''	30 Tons	1950*1320*1260	610*1220mm	2.2kw	50-240mm	2000kg
HG-B30T/63''	30 Tons	2330*1320*1260	610*1600mm	2.2kw	50-240mm	1900kg
HG-A40T/63''	40 Tons	2330*1320*1260	610*1600mm	4kw	50-240mm	2500kg
HG-B40T/48''	40 Tons	1950*1320*1260	610*1220mm	4kw	50-160mm	2400kg
HG-A50T/63''	50 Tons	2330*1320*1260	610*1600mm	4kw	50-240mm	2900kg
HG-B50T/48''	50 Tons	1950*1320*1260	610*1220mm	4kw	50-160mm	2800kg

Remark:Cutting force and area can be as request;A and B series have different stroke for different thickness of materials.

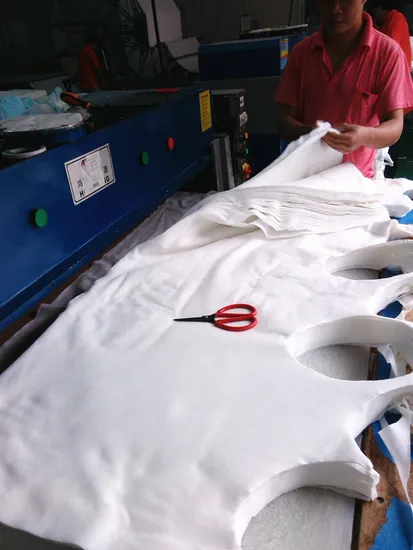

4. The Cutting Machine Working Show
5. Application Materials: The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
6. FQA: 1)What's warranty of machine?
12 months Warranty Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.

3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:

Send your Inquiry Details in the Below,Click "Send"!
we will reply within 24h!

---
