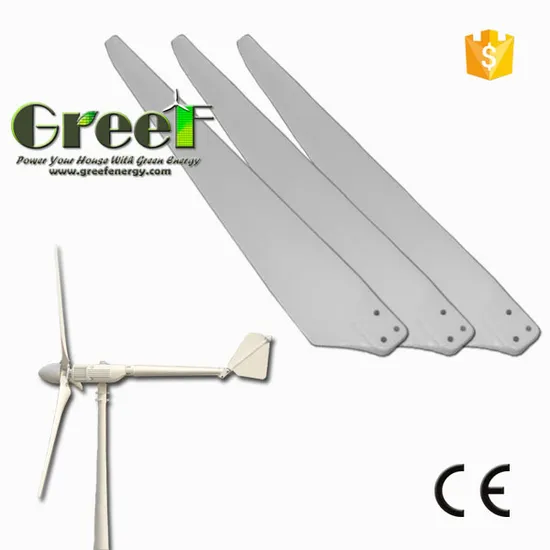

300W-100kw Horizontal Wind Turbine Blades for Sales

Product Description

High Quality Home Wind Blades Low Noise Low Starting Wind Speed Wind Blades for sale
Product Description The 300W-100KW FRP wind energy generator blades manufacturer on modern turbines "catch" the wind and use it to rotate the shaft of a generator. The spinning shaft of the generator converts mechanical energy into electricity. The wings of a wind energy generator have the most important job of any wind turbine ; How well you design your wings can greatly impact how much power your turbine produces.
GREEF Company can supply Horizontal axis frp generator wings from 300w to 100kw and Rotator diameter from 1m to 22m.

Technical Data

Model	Rated Power	Single Length	Chord Wide	Single Weight	Start wind speed	Rated wind speed	Rated rotor speed	Safety wind speed
HB-1.2	500W	1200mm	160mm	2kg	3m/s	10m/s	300rpm	40m/s
H-1.17	500W	1170mm	170mm	2.3kg	3m/s	10m/s	300rpm	40m/s
HB-1.34	1KW	1340mm	170mm	2.6kg	3m/s	10m/s	300rpm	40m/s
HB-1.35	1KW	1350mm	200mm	2.6kg	3m/s	10m/s	300rpm	40m/s
HB-1.55	1.5KW	1550mm	240mm	3.5kg	3m/s	10m/s	300rpm	40m/s
HB-1.6	2KW	1600mm	230mm	3.6kg	3m/s	10m/s	300rpm	40m/s
HB-1.9	3KW	1900mm	250mm	6.1kg	3m/s	11m/s	220rpm	40m/s
HB-2.28	3KW	2280mm	315mm	16kg	3.5m/s	11m/s	230rpm	40m/s
HB-2.31	3KW	2310mm	315mm	13kg	3.5m/s	11m/s	230rpm	40m/s
HB-2.49	5KW	2490mm	330mm	13kg	3m/s	11m/s	220rpm	40m/s
HB-2.6S	5KW Stalled	2600mm	300mm	7.5kg	3m/s	14m/s	250rpm	50m/s
HB-3.1S	5KW Stalled	3100mm	310mm	10.2kg	3m/s	13m/s	180rpm	50m/s
HB-3.2	7KW	3200mm	450mm	34kg	3m/s	12m/s	220rpm	50m/s
HB-3.5	10KW	3500mm	400mm	32kg	3m/s	10m/s	200rpm	50m/s
HB-3.8F	10KW	3800mm	400mm	35kg	3m/s	10m/s	180rpm	50m/s
HB-3.8P	10KW	3800mm	400mm	36kg	3m/s	11m/s	180rpm	50m/s
HB-3.6	10KW	3600mm	520mm	46kg	3.5m/s	12m/s	220rpm	50m/s
HB-4.5	15KW	4500mm	500mm	66kg	3m/s	10m/s	180rpm	50m/s
HB-4.795	20KW	4795mm	542mm	82kg	3m/s	11m/s	160rpm	50m/s
HB-5.885	30KW	5885mm	830mm	150kg	2.5m/s	10m/s	90rpm	50m/s
HB-7	30KW	7000mm	830mm	165kg	2.5m/s	11m/s	90rpm	50m/s
HB-8.17	50KW	8170mm	1150mm	240kg	3m/s	10m/s	60rpm	50m/s
HB-9.065	80KW	9065mm	1025mm	260kg	2.5m/s	11m/s	60rpm	50m/s
H-10.5	100KW	10500mm	1035mm	280kg	2.5m/s	11m/s	60rpm	50m/s

Advantage *Low start wind speed
*Good performance in endurance resistance
*Strength enough can meet the request of out of control running
*No noise Below 65 dB
*Special edge protection technology ,Avoid Wind ,sand, snow, Salt fog erosion protection
*Low wind resistance(Surface rude treatment & with special protection coat)
*Easy balance,running stable.
Packaging & Shipping 1. Wind turbine FRP blades use inner foam protection outer Plywooden case .
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .small blades can delivery by DHL FEDEX etc.
If you have any request in package and shipping please tell our sales we will do according to your request.


Our Services We can open module for your FRP blades design


Sale Service All blades are free 3 years warranty, Lifelong maintenance
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

Company Information GreeF company has the best wind turbine blades factory in China ,we can manufacture the wind turbine blades for customers with their design ,and we also have hundreds kinds of mature design wind turbine products.
Greef company already coperation with serval famous wind turbine company all over the world ,Waiting for become your good partner in the near future !


FAQ 1. Q: Can I buy a sample only ?
A: Very of course . Sample we can give special price .

2. Q: Do you have nose cone or hub for match the blades?
A: yes we have FRP nose cone and hub plate too.

3.Q:Which model is suitable for my wind generator ?
A: Please contact our sales with following points :
1. What is your wind turbine rated power.
2. Its design Rated wind speed .

---
