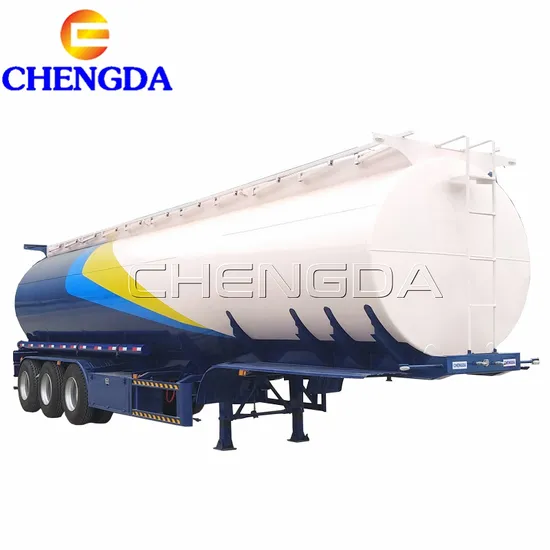

3axle 13ton Gas Fuel Oil Semi Trailer Used Fuel Tanker Trailer

Product Description

Gas Fuel Oil Tank Semi Trailer Used Fuel Tank Trailer Fuel Tanker Trailer

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank

Volume	42000L
Thickness(mm)	Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*14000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3" API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3"seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment

Parts Landing GearHeavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
King Pin Plate 90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
Axle1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air SuspensionAir Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Packing & Delivery Bulk cargo refers to bulk cargo, such as coal, grain, mineral sand and petroleum, which is not packaged on deck or cabin. The loading and unloading of this kind of goods need the corresponding dock handling equipment, and some also need special means of transport, such as tankers.
Definition: A mode of transport in which a truck with containers, a tray with a pulley, or a variety of motor vehicles are used as a cargo unit to haul into the hold of a ship and transport it. Applied disciplines: geography (first-level disciplines); economic geography (second-level disciplines) above by the national science and technology terminology examination and promulgation of the Ro-Ro Transportation refers to the use of "Ro-Ro Shipping" together with a vehicle and cargo shipping mode. The advantages are: easy handling and low cost. Container transportation refers to a new type of high-speed and high-speed transportation which takes container as the carrier and assembles the goods into a container unit so as to use large-scale loading and unloading machinery and large-scale carrying vehicles in the field of modern circulation to carry out the loading and unloading, handling and transportation tasks, and thus to better realize the "door-to-door" transportation of goods. Efficient and efficient transportation mode.
Company Profile
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
All the chassis are manufactured under standard process to ensure quality.
All the parts are supplied to whenever you need.
Trading Show
Our Service
1. OEM Manufacturing welcome
2. Sample order MOQ 1 unit
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
he solve way for you.
5. Main production :dump trailer, fuel tanker trailer, container transport trailer, lowbed semi-trailer; or full trailer tractor head ,dump truck, cargo truck, concrete mixer truck from sinotruck to other famous brands based on the long
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Certification
1.CCC is shorted for China Compulsory Certificates, which is similar to others certificates for product quality standardization, such as European CE system. In order to obtain the CCC certificates, the manufacturer is required to do the product testing and factory audits.
2. WMI is short for World Manufacturer Identifier. Every vehicle manufacturer all over the world has one unique or several WMI.
3.All the semi trailers manufactured in our factory is in conformity with quality management system standard:GB/T19001-2008 idt ISO 9001:2008.
Contact
Jennifer
Department Manager
Chengda Group
Add: Room1910 ShanGangXinTianDi No61-3 GongYe South Street, Jinan,China

---
