Heavy Metal Hydraulic Gantry Shearing Machine Iron Cutting Machines Hydraulic Guillotine Shearing Machine Heavy Metal Shear Machine

Product Description

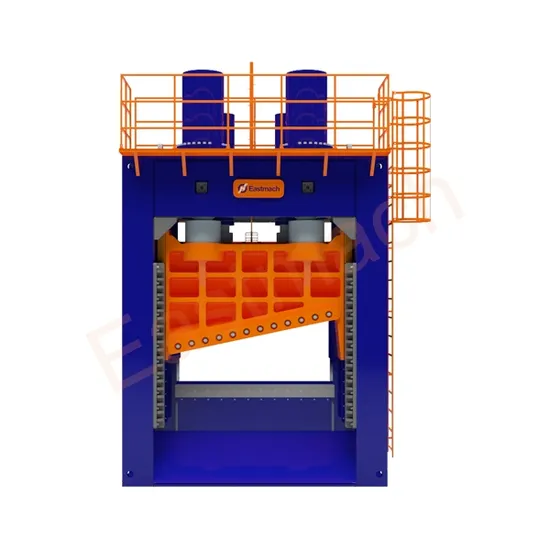

Product Feature Hydraulic Gantry Shearing Machine
Hydraulic Gantry Shearing Machine is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc.
The product has the following characteristics:
1. Install high-strength wear-resistant alloy steel plates in areas prone to wear and tear, effectively extending the service life of the equipment;
2. The shear slider guide rail and shear oil cylinder adopt automatic lubrication to prevent dry friction damage;
3. The intelligent control system provides optimal shear control and reduces the idle stroke of the shear cylinder;
4. The maximum cutting angle can reach 12 degrees, with strong cutting ability.
Own brand as manufacturing also accepts OEM/ODM
Product Parameters

Model	Parameter		(t/h) Maximum output (t/h)	(mm) Scissor width (mm)	(mm) Minimum opening (mm)	(mm) Shearing capacity(mm)			(/min) Shear frequency(times/min)	(mm)Silo size(mm)	Main motor
	Shear force	Pressing force				round steel	square steel	steel plate
Q91Y-400	400	70	3-4	1300	370	φ65	50×50	35×800	3~4	4000×1400×400	2×30KW
Q91Y-500	500	140	6-10	1700	480	φ90	80×80	50×1000	3~4	6000×1600×800	2×45KW
Q91Y-630	630	140	8-12	1720	580	φ120	100×100	55×1200	3~4	8000×1600×850	3×45KW
Q91Y-700	700	220	12-15	1920	580	φ140	120×120	60×1900	3~4	8000×2000×900	5×45KW
Q91Y-800	800	280	15-20	2130	680	φ160	140×140	70×1900	3	8000×2000×900	5×45KW
Q91Y-1000	1000	300	18-23	2130	680	φ180	150×150	80×1900	3	8000×2000×1200	7×45KW
Q91Y-1250	1250	400	20-25	2130	680	φ210	180×180	110×1900	3	10000×2500×1200	8×45KW
Q91Y-1500	1500	500	24-30	2130	680	φ225	200×200	130×1900	3	10000×2500×1200	10×45KW
Q91Y-2000	2000	700	30-38	2130	680	φ250	220×220	150×1900	3	10000×2500×1200	12×45KW

Product Description FAQ
1.Which country have been exported?
Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa etc.
2.How about the Shipment?
Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Yantai and Shanghai etc. Sales manager will select an
optimal shipping method for you. For more information, please contact us.
3. How about the package?
Our attachments are packaged by standard export wooden cases free from fumigation.
4. How about delivery time?
Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.

---
