High-Quality PVC High Frequency Welding Machine for Tarpaulin /Tent/PVC/Canvas Welding, Heat Sealing

Product Description

Product Description
PVC Welding Machine is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy,swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth,the membrane structure, etc.
SPECIFICATION:

Specification
Model	QO-5KWFB	QO-8KWFB	QO-12KWFB	QO-15KWFB	QO-25KWFB
Output Power	5000W	8000W	12000W	15000W	25000W
Anti-Spark System	NL-5557 High sensitive anti-spark system
Voltage	3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency	27.12MHz +/- 0,6 %
Input power	5KVA	15KVA	20KVA	25KVA	35KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB	E3130	8T85RB	8T25RB
Max pressure	350kg	500kg	800kg	1000kg	1000kg
Operation mode	Pneumatic Operated (Hydraulic pressure upon request)
Max gap of electrodes	100mm
size of active horn	100mm
per Electrode (W*H*L)(mm)	50*50*600	50*50*800	50*50*900	50*50*1000	50*50*1200
Size of Work Table (L*W)(mm)	350*700	450*1050	450*1050	400*1150	400*1250
Welding time	0.01~9.99s adjustable
Net weight	400kg	800kg	900kg	1200kg	1500kg
Space behind electrode	400*750mm
Foreseen productivity	According to welding times and operator skills

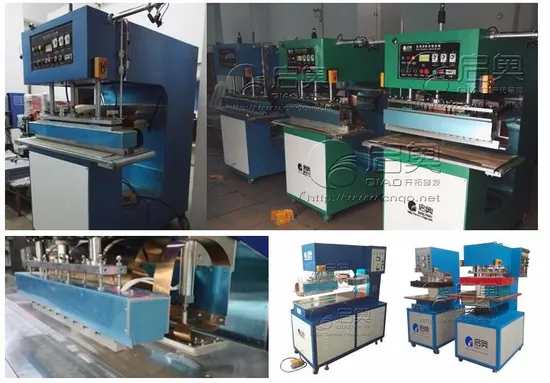

Detailed Images
Main Features

1) With two moving rolls on both side, convenient in continuous welding with large area.

2) The length span is 600 mm, internal occupation can reach 1150 mm

3) The welding length is optional, max welding area can reach 50*1000mm

4) Can weld two line for optional.

5) Firmly weld, be well meeting with materials of thick or thin

6) With laser scan system for precise positioning welding.

7) The distance of body from horn can be customized.

8) Adopting high sensitive anti sparkle device NL5557 to protect welding mould.

9) European standard high-frequency oscillatory square box, reliable and Stable in output.

Packing & Delivery
