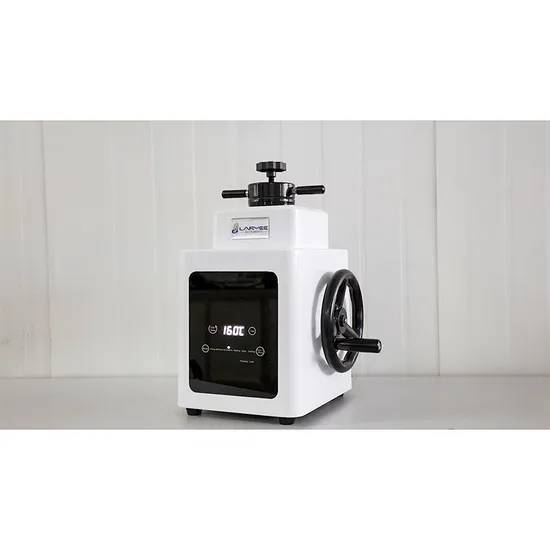

Manually Metallographic Mounting Press (MMP22/30/45)

Product Description

Application:
This machine is designed for purpose of the last process before
polishing. It is setting up those small, difficult-to-hold or irregular
specimens for metallographical test. It can facilitate polishing and
watch properly the ideal material structure and measure the hardness
of the material by hardness tester. The inserts for this machine are
limited to thermosetting materials only. The punching temperature of
different thermosetting materials can be adjusted depending upon the
features of materials .The inserts are available from the sales agency
of our company.
Features:
1. MMP22/30/45 is suitable for minute or irregular shape and sample that is different to hold so as to cut or Polish the samples. And then test metallographic, spectral detection or hardness.
2. This machine is controlled by digital temperature controller, after finishing samples, it will cut off automatically.The timer control the sample time(internal initiative), and realize that nobody can surpervize while sampling.
Specification:

Model	MMP22	MMP30	MMP45
Sample diameter	Ø 25× 15mm	Ø 30× 15mm	Ø 45× 18mm
Heater specification	650W 220V
Temperature setting range	0-200ºC
Power	220V, 50Hz
Dimension	440X253X310mm
Weight	32 kg
Accessory	Heater, Mounting raw materials, Hopper

---
