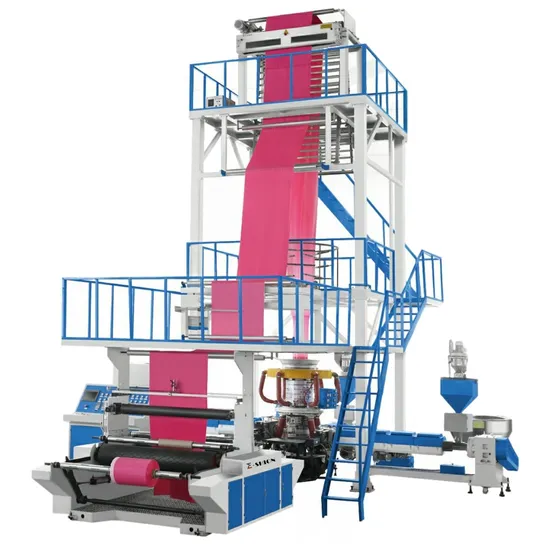

Film Blowing Price Double Layer IBC ABA ABC Three Layer Extruder Machine

Product Description

USE:
The 3 layers fim blowing line is composed in three extruders andauxiliary parts. lt can be usedfor blowing with HDPE and LDPE,LLDPE, metallocene polyethylene, etc. through the extrusiondie headto form three layer complex composite film. With greatly improvingthe physical properties of the films and an increase of strength, sothat the fims featured in good obstruct propertiesand air tightness.This thin fim barrier properties, thermal insulation, waterproof, anti-frost,oxygen barrier, oil resistance and other excellent, can be widelyused in heavy packing, such asfruit, meat dish, pickles, fresh milk,liquid beverage etc. Features:
Application: DHL courier bags, lamination film, agriculture film etc. Suitable material: HDPE / LDPE / LLDPE / Metallocene / EVA / PA Film layer: 3 layers Screw L/D ratio: 30:1 Direct-connection design gearbox. PID+SCR temperature controller. ABB or HITACHI inverter. Oscillating rotary device (haul-off unit).

Get a quote now

Detailed Photos

Product Parameters

Technical Specificatopm:
Model	SJ-50X2/55X1/FM1100	SJ-60x2/70x1/FM1600	SJ-65X2/75X1/FM1800
Suitable material	LDPE/LLDPE/MLDPE
Film width	300-1000mm	600-1500mm	800-1700mm
Film thickness	0.04-0.15	0.04-0.15	0.04-0.15
Max.extrusion output	50-100kg/h	80-150kg/h	100-180kg/h
Extruder
Screw diameter	Ф50/55/50	Ф60/70/60	Ф65/75/65
Screw Vd length	32:1	32:1	32:1
Screw material	38CrMoAl	38CrMoAl	38CrMoAl
Cytinder material	38CrMoAl	38CrMoAl	38CrMoAl
Cylinder cooling	370w×2	370w×2	370w×3
Driving motor	15kwx2/18.5kwx1	22kwx2/37kwx1	30kwx2/45kwx1
Temperature control	3	4	5
Average power-consume	50kw	80kw	105kw
Tlype of die
Die size	Ф200-Ф300mn	Ф300-Ф400mn	Ф350-Ф450mn
Temperature control	3	3	3
Air ring	1	1	1
Air blower	5.5kw	7.5kw	11kw
Take-upunit
Roller width	159X1100mm	159X1500mm	159X1700mm
Effective width	1000mm	1400mm	1600mm
Take-up speed	10-65m/min	10-65m/min	10-65m/min
Take-up motor	1.5kw	2.2kw	2.2kw
Winding unit
Type	SURFACE FRICTION TYPEFRICCION DESUPERFICIE
Winding motor	1.5kw	1.5kw	2.2kw
Winding speed	10-65m/min	10-65m/min	10-65m/min
Overall dimension(Ln W×H)	7500x5500×5500mm	7500×6000x8500mm	8000×7000×8500mm

Recommend Related Products
ABA Film Blowing Machine PP Film Blowing Machine Single layer Film Blowing Machine

Four-color Flexo Printing Machine Six-color Flexo Printing Machine T-shirt Bag Making Machine
automatic Flat Garbage Bag Making Machine Drawstring Garbage Bag Making Machine Plastic recycling granulator Our Factory
OUR WORKSHOP Our factory specializes in the manufacturing of blown film machines, bag-making machines, printing machines, and pelletizing machines. Our workshop is equipped with modern technology and a dedicated team of skilled professionals. We take pride in our ongoing commitment to quality and innovation, striving to keep our machines in line with industry standards. Our workshop is well-organized, promoting a productive atmosphere where attention to detail is highly valued. We are dedicated to meeting the needs of our customers and providing them with reliable machinery solutions.

Get a quote now

FAQ
Q: Where is your factory located? A: Our factory is situated in Ruian City, Zhejiang Province, China. It's about a 40-minute flight or a 4-hour train ride from Shanghai. We would be happy to pick you up at the airport or station and welcome you to visit our factory.
Q: How long is your delivery time? A: Our standard delivery time is usually 30-45 days. However, if you need it urgently, we can manufacture your machine first and deliver it within approximately 10 days.
Q: What's your warranty policy? A: We offer an 18-month warranty on all our products, along with lifetime maintenance. This means that if any parts break down during the warranty period, we will provide free replacement parts.
Q: What package do you use for the product? A: Our products are coated with anti-corrosion oil and covered with plastic film for protection. If you prefer wooden box packing, there may be an additional cost.
Q: Does your factory provide installation service? A: Yes, our engineers can go to the customer's factory for installation. The buyer should prepare the necessary materials for testing the machine in advance and bear the cost of the supplier's technicians, including round-trip airfare, visa fees, accommodation, and wages. The cost is USD 120 per person per day, starting from the date of work commencement until their arrival at the factory.
Q: What are your terms of payment? A: We accept various payment methods such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Western Union. Please let us know which method you prefer when making the payment.
Q: What if parts break within the warranty period? A: If any parts break down due to manufacturing defects within the warranty period, we will express replacement parts free of charge. You can contact our customer service team to initiate the warranty claim process.tact our customer service team to initiate the warranty claim process.
