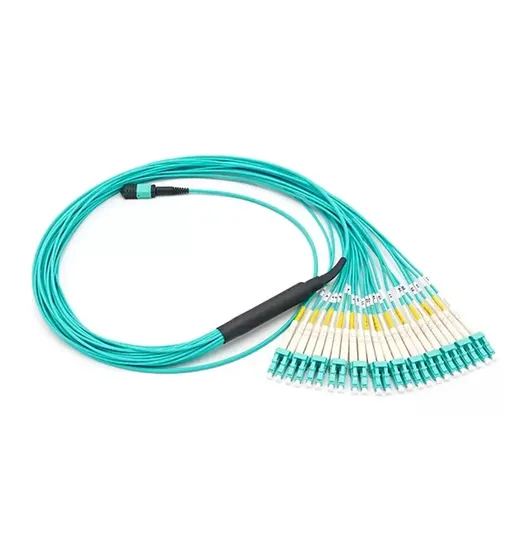

LSZH MPO Trunk Cable Om4 12f MPO-LC-MTP Fiber Optic Patch Cord

Product Description

LSZH MPO trunk cable OM4 12F MPO-LC-MTP fiber optic patch cord Product Description MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Product Features
- Low Insertin Loss: 0.35dB ultra low IL
- Bend Insensitive Fiber: 7.5mm minimum bend radius
- Test Assured Program: Insertion loss and return loss testing; End-face inspection; 3D interferometer test.
Product Application ·Data Centers
.High speed FTTH

Detailed Photos
Technical Specifications Optical Characteristics:

	G.652	G.657	50/125um	62.5 / 125 μm
Attenuation (+20ºC)	@850nm			≤3.0dB/km	≤3.0dB / km
	@1300nm			≤1.0dB/km	≤1.0dB / km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.22dB/km
Bandwidth	@850			≥500MHZ.km	≥ 500MHZ · km
(Class A)	@ 1300			≥1000MHZ · km	≥600MHZ · km
Numerical aperture				0.200 ± 0.015NA	0.275 ± 0.015 NA
Cable cut-off wavelength		≤1260nm	≤1480nm

Mechanical parameters:

Connector A	MPO Female (Male)	Connector B	MPO Female (Male)
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max(0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C

Packaging & Shipping
Customer Feedbacks
FAQ Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!

---
