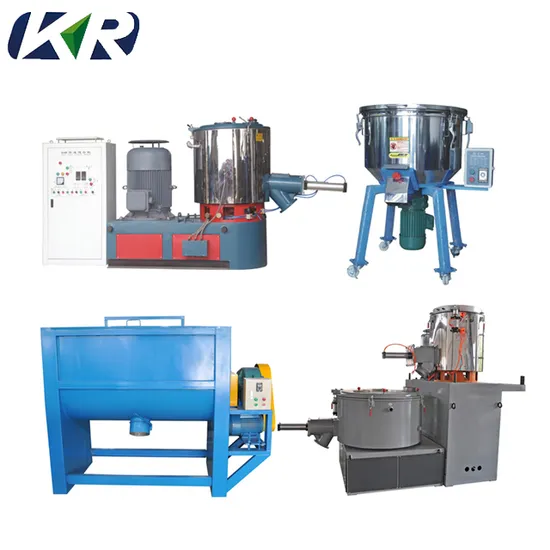

High Speed Mixer Vertical Color Mixer Machine Plastic Mixer

Product Description

High speed mixer vertical color mixer machine plastic mixer
Haisi extrusion supply all kinds of plastic mixer machine to meet your various requirement to materials.
Characteristics
Designed in small size and vertical structure with castor wheels, so easy to move.
Adopted geared motors, it ensures low noise and double operations.
Mixed in a short time, with low energy consumption and high productivity.
Pail cover and bottom parts are compress formed, precisely mathced & durable.
Mixing time able to set within 0-30 minutes. High speed mixer working photo
Vertical color mixer working photo High speed hot and cold mixer Adopts pole changeable two steps speed motor to drive for large volume material mixing, Also can use stepless, variable speed motor with inverter for different speed adjustment with different material characters.
The machine is mainly using for blending dry PVC with rigid or thermoable poly plastics, ABS, PP, PE Pigments, ...Etc, are also applicable.

Type	Volume (L)	Effective Volume (L)	Mixing time (min/batch)	Rotate speed (r/min)	Motor (Kw)	Capacity (kg/hour)
SHR-5	5	3	6-8	1500	1.1	10
SHR-10	10	7	6-8	1500	3	20
SHR-25	25	20	6-8	1500	5.5	50
SHR-50	50	35	6-10	750/1500	7/11	100
SHR-100	100	75	6-10	650/1300	14/22	200
SHR-200	200	150	6-10	475/950	30/42	400
SHR-300	300	225	6-10	430/860	40/55	500
SHR-500	500	375	8-12	330/660	55/75	800
SHR-800	800	520	8-12	395/790	83/110	1400
SHR-1000	1000	650	8-14	330/660	90/132	1600
SHR-1300	1300	850	8-14	330/660	132/200	2100

---
