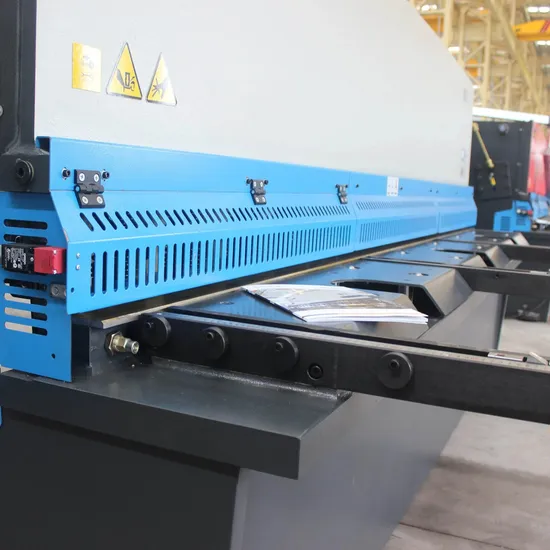

Metal Plate Shearing Machine E21s System Cutting Shears Hydraulic Sheet Metal Steel

Product Description

Product Feature
Standard Equipment
Optional Equipment
Details ImagesSwing Beam Shears Back Gauge System:
One of the most important factors for bending capacity is the design of the back gauge and stability. Quality cutting is possible with perfect product stability and precision back gauge.
The high-speed ballscrew back gauge system movement is also supported by linear guides, which helps the back gauge achieve long life and greater sensitivity and strengthens against any collisions.

Backgauge use Ball Scrwe	Working Table	Back safety net

Electrics - France	Montor	Back safety net

Product Parameters

Type	Max Thickness (mm) <450N/mm2	Max Thickness (mm) <700N/mm2	Cutting Length (mm)	Throat Depth (mm)	Shearing Angle (°)	Blade Length (mm)	Shearing Speed (Cuts/min)	Back Gauge Specification Travel (mm)	Back Gauge Specification Speed (mm/sec)	Motor Power (kw)	Oil Tank Capacity (L)	Weight (kg)	L*W*H (mm)
4x2500	4	2.5	2500	100	1°30'	2600	10~12	600	180	5.5	220	3800	3040*1610*1620
4x3200	4	2.5	3200	100	1°30'	3300	10~12	600	180	5.5	290	5000	3840*1610*1620
4x4000	4	2.5	4000	100	1°30'	4100	8~10	600	180	5.5	290	6500	4600*1700*1700
4x6000	4	2.5	6000	100	1°30'	6100	5~7	600	180	11	380	11000	6460*2100*3200
6x2500	6	4	2500	145	1°30'	2600	10~12	600	180	7.5	220	5000	3040*1610*1620
6x3200	6	4	3200	145	1°30'	3300	9~11	600	180	7.5	290	6000	3840*1610*1620
6x4000	6	4	4000	145	1°30'	4100	8~10	600	180	7.5	290	8000	4620*1750*1700
6x5000	6	4	5000	145	1°30'	5100	6~8	600	180	7.5	380	10500	5400*1750*1700
6x6000	6	4	6000	145	1°30'	6100	5~7	600	180	11	380	16500	6480*2100*2300
8x2500	8	5	2500	300	1°30'	2600	10~12	600	180	7.5	220	6000	3040*1700*1700
8x3200	8	5	3200	300	1°30'	3300	8~10	600	180	7.5	290	7200	3860*1700*1700
8x4000	8	5	4000	300	1°30'	4100	8~10	600	180	7.5	290	8800	4640*1700*1700
8x5000	8	5	5000	300	1°30'	5100	8~10	600	180	7.5	380	11500	5400*2400*2000
8x6000	8	5	6000	300	1°30'	6100	8~10	600	180	11	380	18000	6480*2100*2350
10x2500	10	6.5	2500	300	1°30'	2600	9~11	600	180	11	320	7300	3040*1700*1700
10x3200	10	6.5	3200	300	1°30'	3300	9~11	600	180	11	420	8000	3860*1700*1700
10x4000	10	6.5	4000	300	1°30'	4100	8~10	600	180	11	420	12000	4650*2100*2000
10x6000	10	6.5	6000	300	2°	6100	5~7	600	180	15	520	24000	6500*2100*2300
12x2500	12	8	2500	300	2°	2600	9~11	600	180	18.5	360	9000	3140*2150*2000
12x3200	12	8	3200	300	2°	3300	9~11	600	180	18.5	500	10800	3880*2150*2000
12x4000	12	8	4000	300	2°	4100	8~10	600	180	18.5	500	13000	4680*2150*2000
12x5000	12	8	5000	300	2°	5100	6~8	600	180	18.5	520	16000	5900*2150*2000
12x6000	12	8	6000	300	2°	6100	5~7	600	180	18.5	600	29000	6900*2600*2700
12x8000	12	8	8000	300	2°	8100	5~7	600	180	18.5	620	46500	9000*3500*3500
16x2500	16	10.5	2500	320	2°30'	2600	9~11	600	180	18.5	360	11000	3140*2150*2000
16x3200	16	10.5	3200	320	2°30'	3300	8~10	600	180	18.5	500	13000	3880*2150*2000
16x4000	16	10.5	4000	320	2°30'	4100	8~10	600	180	18.5	500	16300	4650*2150*2200
16x5000	16	10.5	5000	320	2°30'	5100	6~8	800	180	18.5	520	20000	5900*2600*2700
16x6000	16	10.5	6000	320	2°30'	6100	5~7	800	180	22	550	36000	6900*2700*2700
20x2500	20	13	2500	320	3°	2600	8~10	800	180	22	540	15500	3440*2300*2500
20x3200	20	13	3200	320	3°	3300	8~10	800	180	22	800	18000	4150*2350*2700
20x4000	20	13	4000	320	3°	4100	5~7	1000	180	22	800	21000	4850*2350*2700
25x2500	25	16.5	2500	320	3°	2600	8~10	1000	180	37	800	19000	3200*2700*2900
25x3200	25	16.5	3200	320	3°	3300	5~7	1000	180	37	800	23000	4200*2700*2900
25x4000	25	16.5	4000	320	3°	4100	5~7	1000	180	37	800	27000	3850*2700*2900
30x2500	30	20	2500	320	3°	2600	5~7	1000	180	37	800	23500	3300*2900*2900
30x3200	30	20	3200	320	3°	3300	5~7	1000	180	37	800	27500	4200*2900*2900
