Air Classifier Acm Grinding Superfine Grinder Ultra Fine Pulverizer Machine Mill

Product Description

Product Description
WFJ Series Air Classifier Mill
Product Introduction:Air Classifier Mill, its another name is Ultra Fine Powder Pulverizer, with a winnowing, no screen,
a variety of properties and uniform particle size, the production process is continuous.
Crushing operations in the host machine is not heating up, can crush all kinds of heat sensitive materials.
The overall performance has reached international advanced level, it is widely used in pharmaceutical,
chemical, food, Medicine, Health care...etc. Food, such as, corn, rice, chili, pepper, oil and wheat, soybean,
garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic, sugar, sweeteners. grains,
dried small shrimps, pumpkin powder, spices, seaweed, and other industrial materials crushed.

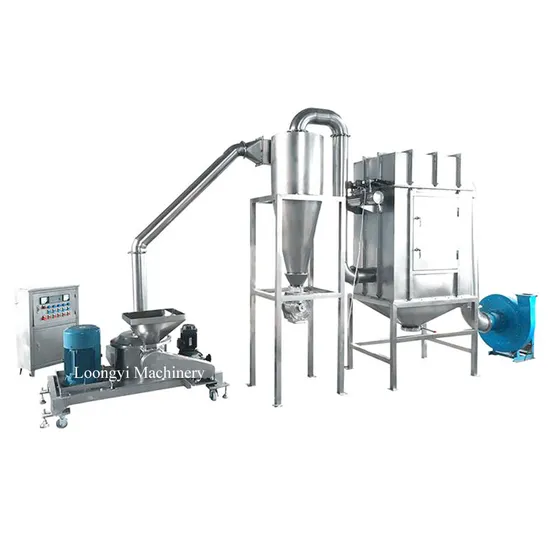

Working Principle:This mill is composed of grinding host, cyclone separator, pulse dust collector, blower, electric control box,
frame and pipes.
After materials are sent to the milling chamber by screw, it will be sheared and crushed by the blade of
high speed rotation. The powders will pass through the guide ring and enter the classifying chamber.
Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size
will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter
will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
Product Parameters
Technical Data:
Detailed Photos
Product Pictures:
Two types blades:
