US$500.00-5,000.00
|
2 Sets
(MOQ)
|
Basic Info.
Model NO.
BMS0.25-16-4-01M
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Maximum Lifting Height
20m
Certification
ISO9001:2000
Standard Lifting Height
4m
Control Method
Pendent Control or Remote Control
Feature
Portable, Light Weight, Waterproof
Core Components
Motor, Bearing, Gearbox
Transport Package
Wooden Case Packaging
Specification
125/250/500/1000/1600/2000/2500/3200/5000
Production Capacity
10000sets/Year
Product Description

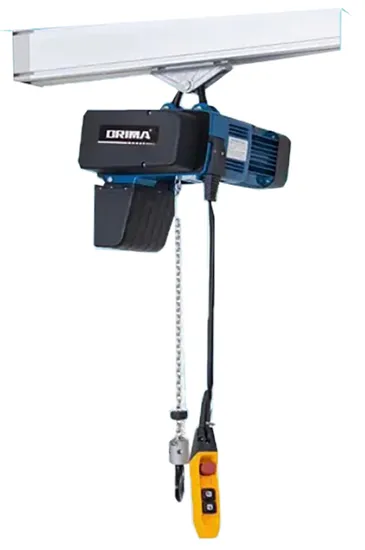

250kg-16m/min Fixed Type European Electric Chain Hoist
European-style chain hoist is an advanced lifting equipment with the following characteristics.
appearance design
It usually has a simple and elegant shape and a compact structure. Its shell is generally made of high-strength alloy materials, which not only ensures the sturdiness and durability of the equipment but also effectively reduces the overall weight.
Performance The European-style chain hoist has efficient and stable lifting capacity. It adopts an advanced transmission system to achieve smooth lifting and lowering actions, ensuring the safety of heavy objects during lifting. At the same time, its operation is simple and convenient, and it can be controlled manually or electrically to meet the needs of different working scenarios.
Safety performance
It is equipped with a variety of safety protection devices, such as overload protection and limit protection, which can stop working in time when abnormal situations occur and effectively prevent accidents.
Good adaptability
It can be used in various harsh working environments such as high temperature, low temperature, and humidity, and the maintenance is relatively simple, which can reduce the use cost of the equipment.
In short, European-style chain hoists have become an indispensable lifting equipment in modern industrial production with their excellent performance, reliable safety guarantees, and wide applicability.
Model | Lifting Weight (kg) | Lifting Speed | Numbers Of Chain | Working Lever FEB/ISO |
BMS0.125-8-4-01M | 125 | 8m/min 2m/min | 1 | 2m/5M |
BMS0.125-16-4-01M | 16m/min 4m/min | 1 | 2m/5M |
BMS0.25-8-4-01M | 250 | 8m/min 2m/min | 1 | 2m/5M |
BMS0.25-12-4-01M | 12m/min 3m/min | 1 | 2m/5M |
BMS0.25-16-4-01M | 16m/min 4m/min | 1 | 2m/5M |
BMS0.5-8-4-01M | 500 | 8m/min 2m/min | 1 | 2m/5M |
BMS0.5-12-4-01M | 12m/min 3m/min | 1 | 2m/5M |
BMS0.5-16-4-01M | 16m/min 4m/min | 1 | 2m/5M |
BMS0.5-24-4-01M | 24m/min 6m/min | 1 | 2m/5M |
BMS0.5-4-4-02M | 4m/min 1m/min | 2 | 2m/5M |
BMS01-6-4-01M | 1000 | 6m/min 1.5m/min | 1 | 2m/5M |
BMS01-8-4-01M | 8m/min 2m/min | 1 | 2m/5M |
BMS01-12-4-01M | 12m/min 3m/min | 1 | 2m/5M |
BMS01-16-4-01M | 16m/min 4m/min | 1 | 2m/5M |
BMS01-4-4-02M | 4m/min 1m/min | 2 | 2m/5M |
BMS01.6-6-4-01M | 1600 | 6m/min 1.5m/min | 1 | 2m/5M |
BMS02-6-4-01M | 2000 | 6m/min 1.5m/min | 1 | 2m/5M |
BMS02-8-4-01M | 8m/min 2m/min | 1 | 2m/5M |
BMS02-4-4-01M | 4m/min 1m/min | 2 | 2m/5M |
BMS2.5-6-4-01M | 2500 | 6m/min 1.5m/min | 1 | 2m/5M |
BMS2.5-8-4-01M | 8m/min 2m/min | 1 | 2m/5M |
BMS2.5-4-4-01M | 4m/min 1m/min | 1 | 2m/5M |
BMS3.2-3-4-02M | 3200 | 3m/min 1m/min | 2 | 2m/5M |
BMS3.2-4-4-02M | 4m/min 1m/min | 2 | 2m/5M |
BMS3.2-6-4-02M | 6m/min 1.5m/min | 2 | 2m/5M |
BMS05-3-4-02M | 5000 | 3m/min 1m/min | 2 | 2m/5M |
BMS05-4-4-02M | 4m/min 1m/min | 2 | 2m/5M |
>>
